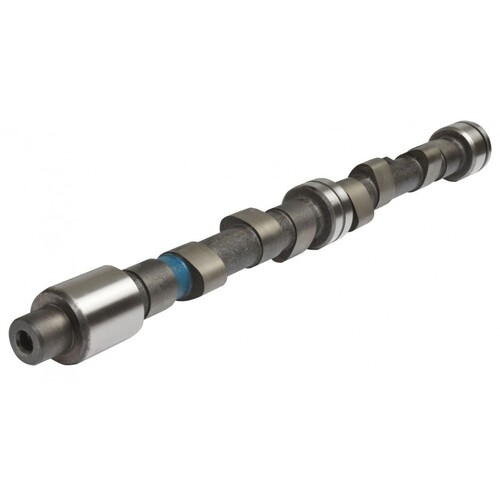

Kelford Cams 145-D Camshaft for (Ford 1.6/2.0L Single OHC) - 250/254 Deg
Kelford Cams 145-D Camshaft for (Ford 1.6/2.0L Single OHC) - 250/254 Deg
SKU: kelford-145-D

Kelford Cams 145-D Camshaft for (Ford 1.6/2.0L Single OHC) - 250/254 Deg

KELFORD CAMS

$453.75

or 4 payments of $113.44 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 145-D Camshaft for (Ford 1.6/2.0L Single OHC) - 250/254 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 250/254 Degrees duration @ 0.050" cam lift, .480"/.480" lift
  • High torque camshafts to suit near stock engines. Ideal in 36 mm restrictor classes.

Specifications

Engine Make: Engine Model: Part Number:
FORD 1.6 & 2.0L Single OHC 145-D
Valve Clearance: Intake: 0.010" Set HOT at the CAM
  Exhaust: 0.010" Set HOT at the CAM

Cam Lift:   Intake: 0.310" Exhaust: 0.310"
Rocker Ratio:   Intake: 1.6 Exhaust: 1.6
Nett Valve Lift:   Intake: 0.480" Exhaust: 0.480"
Advertised Duration @ 0.006" Intake: 282 Exhaust: 286
Duration @ .050" VALVE LIFT Intake: 250 Exhaust: 254
Timing @ .050" VALVE LIFT IVO: 21 BTDC EVO: 55 BBDC
    IVC: 49 ABDC EVC: 19 ATDC
Suggested Centre Lines:   Intake: 104 Exhaust: 108
VALVE Lift @ TDC Intake: 0.132" Exhaust: 0.135"



compatibility

  • 2007-2010 Ford C-Max (Five-speed manual / Four-speed automatic / Continuously variable automatic (CVT) FWD 145 @ 6,000 136 @ 4,500)
  • 2004-2018 Ford EcoSport (Six-speed manual / Four-speed automatic / Six-speed automatic AWD 140 @ 6,000 136 @ 4,500)
  • 2018-On Ford EcoSport (Six-speed automatic AWD 166 @ 6,500 149 @ 4,500)
  • 2004-2008 Ford Fiesta ST (Five-speed manual FWD 150 @ 6,000 140 @ 4,500)
  • 2004 -2011 / Europe only Ford Focus (Five-speed manual / Four-speed automatic / Six-speed dual-clutch automatic FWD 143 @ 6,000 136 @ 4,500)
  • 2011-2018 Ford Focus (Six-speed manual / Six-speed dual-clutch automatic FWD 160 @ 6,500 146 @ 4,450)
  • 2008-2011 / US only Ford Focus (Five-speed manual / Five-speed automatic FWD 140 @ 6,000 136 @ 4,500)
  • 2000-2007 Ford Mondeo (Five-speed manual / Six-speed automatic FWD 145 @ 6,000 136 @ 4,500)
  • 2010-2012 / US only Ford Transit Connect (Four-speed automatic FWD 136 @ 6,300 128 @ 4,750)

SKU kelford-145-D
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
