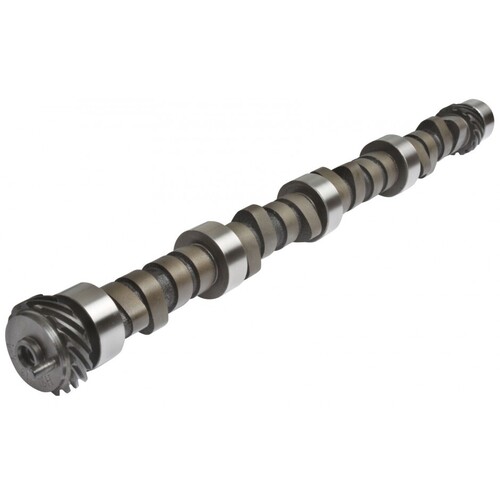

Kelford Cams 170-C Camshaft for (304 CI V8) - 216/216 Deg
Kelford Cams 170-C Camshaft for (304 CI V8) - 216/216 Deg
SKU: kelford-170-C

Kelford Cams 170-C Camshaft for (304 CI V8) - 216/216 Deg

KELFORD CAMS

$574.75

or 4 payments of $143.69 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 170-C Camshaft for (304 CI V8) - 216/216 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 216/216 Degrees duration @ 0.050" cam lift, .490"/.490" lift
  • Performance cam to suit hot street application.

Specifications

Engine Make: Engine Model: Part Number:
HOLDEN 304 CI V8 170-C
Valve Clearance: Intake: Set at the
  Exhaust: Set at the

Cam Lift:   Intake: 0.306" Exhaust: 0.306"
Rocker Ratio:   Intake: 1.6 Exhaust: 1.6
Nett Valve Lift:   Intake: 0.490" Exhaust: 0.490"
Advertised Duration @ 0.006" Intake: 268 Exhaust: 268
Duration @ .050" CAM LIFT Intake: 216 Exhaust: 216
Timing @ .050" CAM LIFT IVO: 1 BTDC EVO: 45 BBDC
    IVC: 35 ABDC EVC: 9 BTDC
Suggested Centre Lines:   Intake: 107 Exhaust: 117
CAM Lift @ TDC Intake: 0.050" Exhaust: 0.026"



compatibility

  • 1985-2000 Holden Commodore V8

SKU kelford-170-C
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
