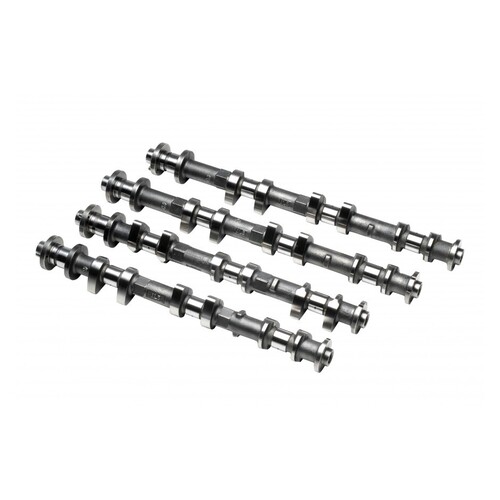

Kelford Cams 231-S6 Camshaft Set With Split Lobe Design for (VR38DETT) - 274, 266/274 Deg
Kelford Cams 231-S6 Camshaft Set With Split Lobe Design for (VR38DETT) - 274, 266/274 Deg
SKU: kelford-231-S6

Kelford Cams 231-S6 Camshaft Set With Split Lobe Design for (VR38DETT) - 274, 266/274 Deg

KELFORD CAMS

$1,929.95

or 4 payments of $482.49 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 231-S6 Camshaft Set With Split Lobe Design for (VR38DETT) - 274, 266/274 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 274&266/274 Degrees advertised duration, 10.60mm&10.55mm/10.55mm lift
  • Special design camshafts for turbocharged H series engines in the 600-1000HP range. Primary/Intermediate lobe specifications are 250 & 254/250& 250 Degrees advertised duration. 7.00mm & 8.60mm/7.00mm &7.00 mm lift.

Specifications

Engine Make: Engine Model: Part Number:
NISSAN VR38 R35 GTR 231-S6
Valve Clearance: Intake: 0.30mm Set COLD at the CAM
  Exhaust: 0.33mm Set COLD at the CAM

Cam Lift:   Intake: 10.90mm Exhaust: 10.88mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.60mm Exhaust: 10.55mm
Advertised Duration @ 0.30mm Intake: 274 Exhaust: 274
Duration @ 1.00mm VALVE LIFT Intake: 232 Exhaust: 232
Timing @ 1.00mm VALVE LIFT IVO: 10 ATDC EVO: 51 BBDC
    IVC: 62 ABDC EVC: 1 ATDC
Suggested Centre Lines:   Intake: 126 Exhaust: 115
VALVE Lift @ TDC Intake: 0.38mm Exhaust: 1.17



compatibility

  • 2008-2019 Nissan Skyline R35 GTR VR38

SKU kelford-231-S6
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
