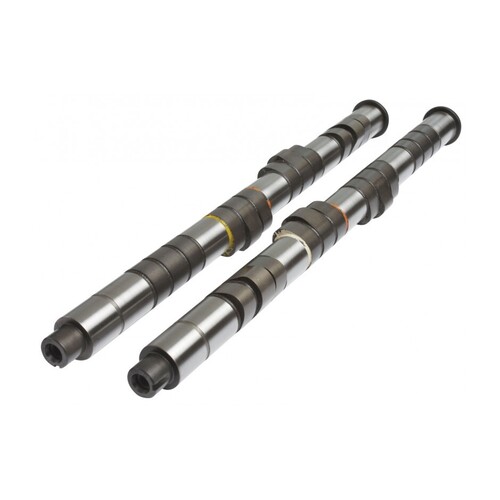

Kelford Cams 176-R1 Camshaft Set for (B16A/B18C Vtec) - 304/298 Deg
KELFORD CAMS
Description
item: Kelford Cams 176-R1 Camshaft Set for (B16A/B18C Vtec) - 304/298 Deg
Description
The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.
- 304/298 Degrees advertised duration. 13.00mm /11.30mm lift
- VK56 Stage 1 turbo cams, suits engines designed to run in the 550-750hp range. Requires KVS56-BT valve springs
Specifications
Engine Make: | Engine Model: | Part Number: | |||||
HONDA | B16A/B18C VTEC | 176-R1 | |||||
Valve Clearance: | Intake: | 0.30mm | Set | HOT | at the | VALVE | |
Exhaust: | 0.30mm | Set | HOT | at the | VALVE | ||
Cam Lift: | Intake: | 8.58mm | Exhaust: | 7.48mm | |||
Rocker Ratio: | Intake: | 1.55 | Exhaust: | 1.55 | |||
Nett Valve Lift: | Intake: | 13.00mm | Exhaust: | 11.30mm | |||
Advertised Duration @ | 0.10mm | Intake: | 304 | Exhaust: | 298 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 274 | Exhaust: | 266 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 36 BTDC | EVO: | 57 BBDC | ||
IVC: | 58 ABDC | EVC: | 29 ATDC | ||||
Suggested Centre Lines: | Intake: | 101 | Exhaust: | 104 | |||
VALVE | Lift @ TDC | Intake: | 5.68mm | Exhaust: | 4.40 |
compatibility
- 1990-1993 Honda Integra LS DB1 Sedan
- 1994-2001 Honda Integra RS/LS/SE/GS-DB7/DC4/DC3
- 1994-2001 Honda Integra "RS/LS/GS/SE/(GSI Australia)" (DC4/DB7)
- 1994-2001 Honda Integra AUDM/NZDM VTi-R
- 1999-2001 Honda Integra AUDM/NZDM Type R
Specifications
SKU | kelford-176-R1 |
Brand | KELFORD CAMS |
Shipping Weight | 25.0000kg |
Shipping Width | 0.600m |
Shipping Height | 0.200m |
Shipping Length | 0.250m |
