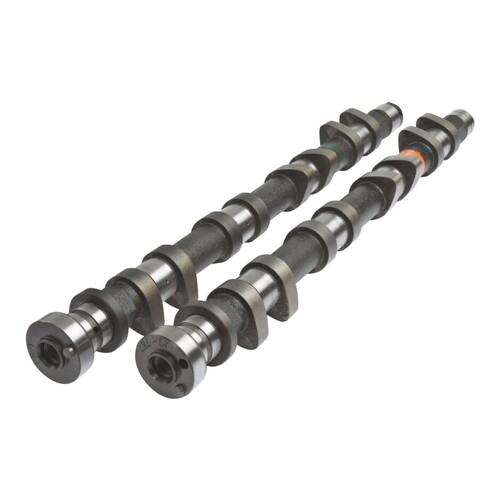

Kelford Cams 213-A Camshaft Set for (KA24) - 260/260 Deg
KELFORD CAMS
Description
item: Kelford Cams 213-A Camshaft Set for (KA24) - 260/260 Deg
Description
The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.
- 260/260 Degrees advertised duration, 9.38mm/9.38mm lift
- Stage 1 cams for turbocharged MZR engines (Non-DISI). Suits OEM valve spring if using 1bar boost or less.
Specifications
Engine Make: | Engine Model: | Part Number: | |||||
NISSAN | KA24 | 213-A | |||||
Valve Clearance: | Intake: | 0.20mm | Set | COLD | at the | CAM | |
Exhaust: | 0.20mm | Set | COLD | at the | CAM | ||
Cam Lift: | Intake: | 9.58mm | Exhaust: | 9.58mm | |||
Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
Nett Valve Lift: | Intake: | 9.38mm | Exhaust: | 9.38mm | |||
Advertised Duration @ | 0.30mm | Intake: | 260 | Exhaust: | 260 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 222 | Exhaust: | 222 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 1 BTDC | EVO: | 43 BBDC | ||
IVC: | 41 ABDC | EVC: | 1 BTDC | ||||
Suggested Centre Lines: | Intake: | 110 | Exhaust: | 112 | |||
VALVE | Lift @ TDC | Intake: | 1.20mm | Exhaust: | 1.00 |
compatibility
- 1989-1990 Nissan 240SX
- 1990-1997 Nissan Navara D21
- 1997-1999 Nissan Navara D22
- 1990-1995 Nissan Pathfinder
- 1989-1995 Nissan Axxess / Nissan Prairie (not UK except parallel imports for wheelchair conversions post 1991)
- 1990-1992 Nissan Stanza (USA-spec)
- 1989-1992 Nissan Pintara / Ford Corsair
- 1993-1996 Nissan Terrano II Europe
- 2000-2004 Nissan Xterra
- 1998-2016 Nissan Navara/Frontier (D22)
- 1991-1998 Nissan 240SX
- 1993-1997 Nissan Bluebird U13
Specifications
SKU | kelford-213-A |
Brand | KELFORD CAMS |
Shipping Weight | 25.0000kg |
Shipping Width | 0.600m |
Shipping Height | 0.200m |
Shipping Length | 0.250m |
