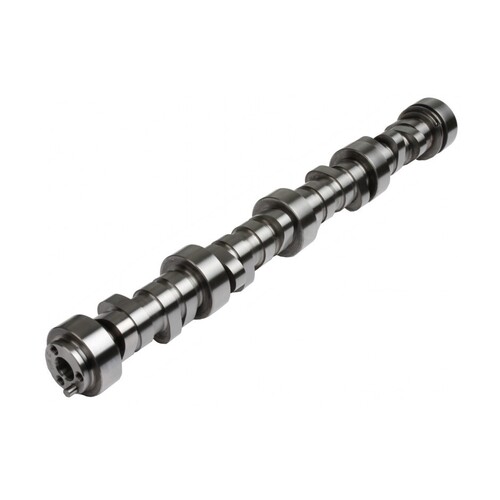

Kelford Cams 108-K Camshaft for (LS Series V8) - 218/222 Deg
Kelford Cams 108-K Camshaft for (LS Series V8) - 218/222 Deg
SKU: kelford-108-K

Kelford Cams 108-K Camshaft for (LS Series V8) - 218/222 Deg

KELFORD CAMS

$684.62

or 4 payments of $171.16 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 108-K Camshaft for (LS Series V8) - 218/222 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 218/222 Degrees duration @ 0.050" cam lift, .561"/.561" lift
  • RB20/25DE-T hydraulic 280 degree racing camshafts, no cylinder head clearancing needed.

Specifications

Engine Make: Engine Model: Part Number:
CHEVROLET LS Series V8 108-K
Valve Clearance: Intake: Set at the
  Exhaust: Set at the

Cam Lift:   Intake: 0.330" Exhaust: 0.330"
Rocker Ratio:   Intake: 1.7 Exhaust: 1.7
Nett Valve Lift:   Intake: 0.561" Exhaust: 0.561"
Advertised Duration @ 0.006" Intake: 274 Exhaust: 278
Duration @ .050" CAM LIFT Intake: 218 Exhaust: 222
Timing @ .050" CAM LIFT IVO: 5 ATDC EVO: 47 BBDC
    IVC: 43 ABDC EVC: 5 BTDC
Suggested Centre Lines:   Intake: 114 Exhaust: 116
CAM Lift @ TDC Intake: 0.043" Exhaust: 0.038"



compatibility

  • 1997-2004 Chevrolet Corvette
  • 1982-2002 Chevrolet Camaro
  • 2004+ Chevrolet Monaro

SKU kelford-108-K
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
