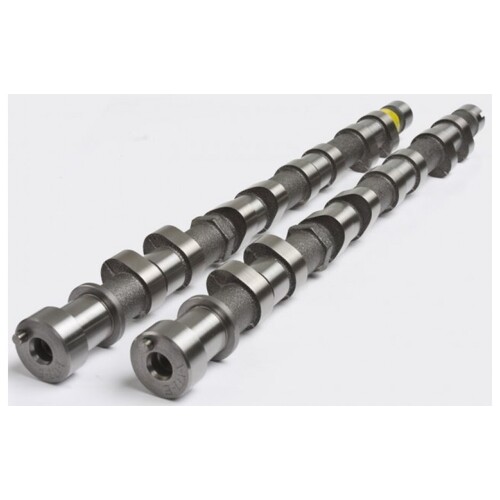

Kelford Cams 1-TX272-L Camshaft Set for (Evo 1-3) - 272 Deg/10mm Lift
Kelford Cams 1-TX272-L Camshaft Set for (Evo 1-3) - 272 Deg/10mm Lift
SKU: kelford-1-TX272-L

Kelford Cams 1-TX272-L Camshaft Set for (Evo 1-3) - 272 Deg/10mm Lift

KELFORD CAMS

$961.95

or 4 payments of $240.49 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 1-TX272-L Camshaft Set for (Evo 1-3) - 272 Deg/10mm Lift

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 272 Degree advertised duration, 10.00mm lift cams.
  • 270/270 Degrees advertised duration, 11.78mm/11.70mm lift. Wild Gti-R street performance cams to suits turbo and ECU upgrade.

Specifications

Engine Make: Engine Model: Part Number:
MITSUBISHI 4G63 EVO 1-3 1-TX272-L
Valve Clearance: Intake: Set at the
  Exhaust: Set at the

Cam Lift:   Intake: 5.78mm Exhaust: 5.78mm
Rocker Ratio:   Intake: 1.73 Exhaust: 1.73
Nett Valve Lift:   Intake: 10.00mm Exhaust: 10.00mm
Advertised Duration @ 0.10mm Intake: 272 Exhaust: 272
Duration @ 1.00mm VALVE LIFT Intake: 226 Exhaust: 226
Timing @ 1.00mm VALVE LIFT IVO: 6 BTDC EVO: 48 BBDC
    IVC: 40 ABDC EVC: 2 BTDC
Suggested Centre Lines:   Intake: 107 Exhaust: 115
VALVE Lift @ TDC Intake: 1.83mm Exhaust: 1.12



compatibility

  • 1992-1996 Mitsubishi Evo 1-3 4G63

SKU kelford-1-TX272-L
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
