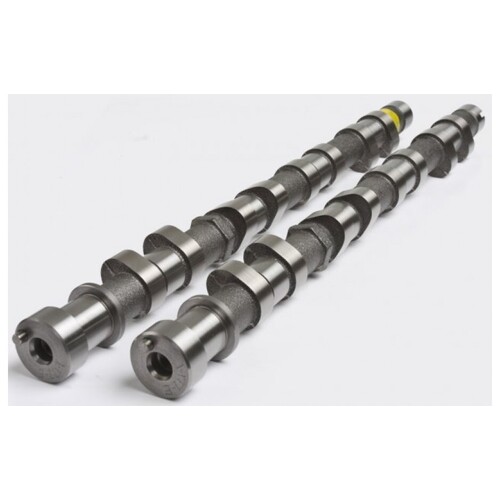

Kelford Cams 1-TX264 Camshaft Set for (Evo 1-3) - 264/260 Deg
KELFORD CAMS
Description
item: Kelford Cams 1-TX264 Camshaft Set for (Evo 1-3) - 264/260 Deg
Description
The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.
- 264/260 Degree advertised duration, 11.00/10.35mm lift cams.
- The ultimate cam for street, strip and track engines from 300-500hp. These camshafts are stable to 35lb boost and 8000 RPM with our recommended valve springs.
Specifications
Engine Make: | Engine Model: | Part Number: | |||||
MITSUBISHI | 4G63 VR4 EVO1-3 | 1-TX264 | |||||
Valve Clearance: | Intake: | Set | at the | ||||
Exhaust: | Set | at the | |||||
Cam Lift: | Intake: | 6.36mm | Exhaust: | 5.98mm | |||
Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
Nett Valve Lift: | Intake: | 11.00mm | Exhaust: | 10.35mm | |||
Advertised Duration @ | 0.10mm | Intake: | 264 | Exhaust: | 260 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 216 | Exhaust: | 216 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 1 BTDC | EVO: | 41 BBDC | ||
IVC: | 35 ABDC | EVC: | 5 BTDC | ||||
Suggested Centre Lines: | Intake: | 107 | Exhaust: | 113 | |||
VALVE | Lift @ TDC | Intake: | 1.10mm | Exhaust: | 0.70 |
compatibility
- 1992-1996 Mitsubishi Evo 1-3 4G63
Specifications
SKU | kelford-1-TX264 |
Brand | KELFORD CAMS |
Shipping Weight | 25.0000kg |
Shipping Width | 0.600m |
Shipping Height | 0.200m |
Shipping Length | 0.250m |
