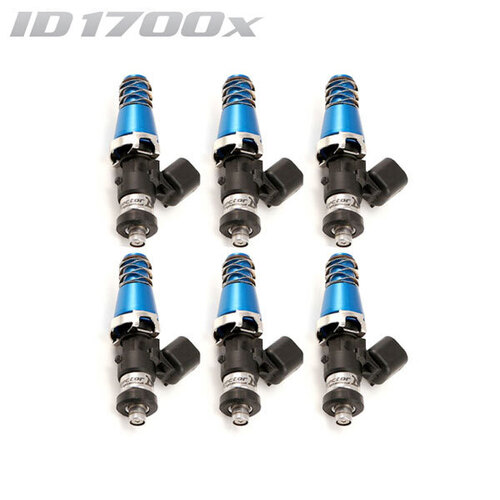

ID1700-XDS Injectors Set of 6, 60mm Length, 11mm Blue Adaptor Top, Denso Lower Cushion - Nissan Skyline R32/R33/R34/Toyota Supra 2JZ-GE/7M-GTE
ID1700-XDS
In Stock
Description
Item: ID1700-XDS Injectors Set of 6, 60mm Length, 11mm Blue Adaptor Top, Denso Lower Cushion - Nissan Skyline R32/R33/R34/Toyota Supra 2JZ-GE/7M-GTE
The ID1700x is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. The ID1700x was designed to fill the gap between the ID1300x and the ID2000, and like the ID1300x, it features corrosion resistant internals making it compatible with all known automotive fuels.
A unique magnetic circuit, resulting from a lengthy development program, makes the ID1700x immune to voltage and pressure sensitivity problems that plague other high impedance high flow injectors. The ID1700x excels at high pressures typical of current automotive systems, and will perform flawlessly in these applications.
The ID1700x was designed to be an all fuel compatible injector, capable of very high flow rates. As such, it will most often be used to deliver E85 to boosted engines, or occasionally, gasoline in extreme high horsepower applications. Neither of these applications requires extended linearity at low flow rates, and so this was given a proportionately lower priority during the design process.
The ID1700x will deliver flawless stoichiometric idle and cruise mixtures on E85, but like the ID2000, should not be expected to do so on gasoline.
If you need flawless drivability on gasoline, the ID1300x will provide this, and is capable of approximately 150hp per injector on E85.
Note: Some vehicles may have multiple possible injector sizes available. Always compare sizing provided in the listing (length and O-Ring size) against injectors currently fitted to vehicle.
Specifications
- Nominal Flow Rate: 1725cc/min @ 3.0 Bar (43.5 psi) Using Iso-Octane at 52 Degrees C (125 Degrees F)
- Maximum Differential Fuel Pressure: 7.0 Bar (101.5 psi)
- Fuel Compatibility: Compatible with Methanol/Ethanol/All Known Hydrocarbon Fuels.
- Electrical Connector: USCAR
Vehicle Fitment
1986 Toyota Supra A70 |
1987 Toyota Supra A70 |
1988 Toyota Supra A70 |
1989 Nissan Skyline R32 GTR |
1989 Nissan Skyline R32 GTS-4 |
1989 Nissan Skyline R32 GTS-T |
1989 Toyota Supra A70 |
1990 Nissan Skyline R32 GTR |
1990 Nissan Skyline R32 GTS-4 |
1990 Nissan Skyline R32 GTS-T |
1990 Toyota Supra A70 |
1991 Nissan Skyline R32 GTR |
1991 Nissan Skyline R32 GTS-4 |
1991 Nissan Skyline R32 GTS-T |
1991 Toyota Supra A70 |
1992 Nissan Skyline R32 GTR |
1992 Nissan Skyline R32 GTS-4 |
1992 Nissan Skyline R32 GTS-T |
1992 Toyota Supra A70 |
1993 Nissan Skyline R32 GTR |
1993 Nissan Skyline R32 GTS-4 |
1993 Nissan Skyline R32 GTS-T |
1993 Nissan Skyline R33 GTR |
1993 Nissan Skyline R33 GTS-T |
1993 Toyota Supra JZA80 |
1994 Nissan Skyline R33 GTR |
1994 Nissan Skyline R33 GTS-T |
1994 Toyota Supra JZA80 |
1995 Nissan Skyline R33 GTR |
1995 Nissan Skyline R33 GTS-T |
1995 Toyota Supra JZA80 |
1996 Nissan Skyline R33 GTR |
1996 Nissan Skyline R33 GTS-T |
1996 Toyota Supra JZA80 |
1997 Nissan Skyline R33 GTR |
1997 Nissan Skyline R33 GTS-T |
1997 Toyota Supra JZA80 |
1998 Nissan Skyline R33 GTR |
1998 Nissan Skyline R33 GTS-T |
1998 Nissan Skyline R34 GT-T |
1998 Nissan Skyline R34 GTR |
1998 Toyota Supra JZA80 |
1999 Nissan Skyline R34 GT-T |
1999 Nissan Skyline R34 GTR |
1999 Toyota Supra JZA80 |
2000 Nissan Skyline R34 GT-T |
2000 Nissan Skyline R34 GTR |
2000 Toyota Supra JZA80 |
2001 Nissan Skyline R34 GT-T |
2001 Nissan Skyline R34 GTR |
2001 Toyota Supra JZA80 |
2002 Nissan Skyline R34 GT-T |
2002 Nissan Skyline R34 GTR |
2002 Toyota Supra JZA80 |
Specifications
SKU | id-1700.60.11.D.6 |
Brand | INJECTOR DYNAMICS |
Shipping Weight | 3.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.150m |
Shipping Length | 0.200m |
