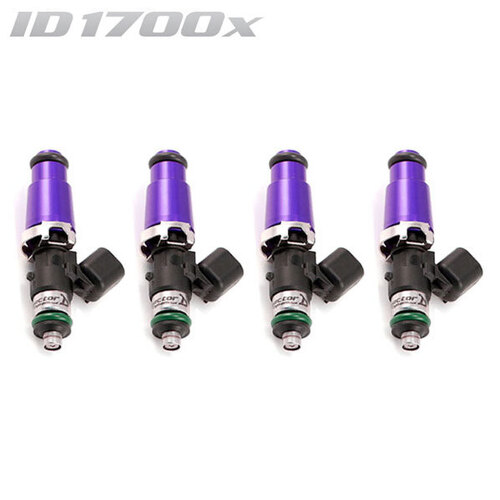

ID1700-XDS Injectors Set of 4, 60mm Length, 14mm Purple Adaptor Top, 14mm Lower O-Ring - Nissan SR20/Toyota 3S-GTE/BMW M3 E30
ID1700-XDS
Description
Item: ID1700-XDS Injectors Set of 4, 60mm Length, 14mm Purple Adaptor Top, 14mm Lower O-Ring - Nissan SR20/Toyota 3S-GTE/BMW M3 E30
The ID1700x is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. The ID1700x was designed to fill the gap between the ID1300x and the ID2000, and like the ID1300x, it features corrosion resistant internals making it compatible with all known automotive fuels.
A unique magnetic circuit, resulting from a lengthy development program, makes the ID1700x immune to voltage and pressure sensitivity problems that plague other high impedance high flow injectors. The ID1700x excels at high pressures typical of current automotive systems, and will perform flawlessly in these applications.
The ID1700x was designed to be an all fuel compatible injector, capable of very high flow rates. As such, it will most often be used to deliver E85 to boosted engines, or occasionally, gasoline in extreme high horsepower applications. Neither of these applications requires extended linearity at low flow rates, and so this was given a proportionately lower priority during the design process.
The ID1700x will deliver flawless stoichiometric idle and cruise mixtures on E85, but like the ID2000, should not be expected to do so on gasoline.
If you need flawless drivability on gasoline, the ID1300x will provide this, and is capable of approximately 150hp per injector on E85.
Note: Some vehicles may have multiple possible injector sizes available. Always compare sizing provided in the listing (length and O-Ring size) against injectors currently fitted to vehicle.
Specifications
- Nominal Flow Rate: 1725cc/min @ 3.0 Bar (43.5 psi) Using Iso-Octane at 52 Degrees C (125 Degrees F)
- Maximum Differential Fuel Pressure: 7.0 Bar (101.5 psi)
- Fuel Compatibility: Compatible with Methanol/Ethanol/All Known Hydrocarbon Fuels.
- Electrical Connector: USCAR
Vehicle Fitment
1984 BMW 3 Series E30 |
1985 BMW 3 Series E30 |
1986 BMW 3 Series E30 |
1987 BMW 3 Series E30 |
1988 BMW 3 Series E30 |
1988 Nissan Silvia/180SX S13 |
1989 BMW 3 Series E30 |
1989 Nissan Silvia/180SX S13 |
1989 Toyota Celica ST18 |
1990 BMW 3 Series E30 |
1990 Nissan Silvia/180SX S13 |
1990 Toyota Celica ST18 |
1990 Toyota MR2 SW20 |
1991 BMW 3 Series E30 |
1991 Nissan Silvia/180SX S13 |
1991 Toyota Celica ST18 |
1991 Toyota MR2 SW20 |
1992 BMW 3 Series E30 |
1992 Nissan Silvia/180SX S13 |
1992 Toyota Celica ST18 |
1992 Toyota MR2 SW20 |
1993 Nissan 200SX S14 |
1993 Nissan Silvia/180SX S13 |
1993 Toyota Celica ST18 |
1993 Toyota MR2 SW20 |
1994 Nissan 180SX S13 |
1994 Nissan 200SX S14 |
1994 Toyota Celica ST20 |
1994 Toyota MR2 SW20 |
1995 Nissan 180SX S13 |
1995 Nissan 200SX S14 |
1995 Toyota Celica ST20 |
1995 Toyota MR2 SW20 |
1996 Nissan 180SX S13 |
1996 Nissan 200SX S14 |
1996 Toyota Celica ST20 |
1996 Toyota MR2 SW20 |
1997 Nissan 180SX S13 |
1997 Nissan 200SX S14 |
1997 Toyota Celica ST20 |
1997 Toyota MR2 SW20 |
1998 Nissan 180SX S13 |
1998 Nissan 200SX S14 |
1998 Nissan 200SX S15 |
1998 Toyota Celica ST20 |
1998 Toyota MR2 SW20 |
1999 Nissan 200SX S14 |
1999 Nissan 200SX S15 |
1999 Toyota Celica ST20 |
1999 Toyota MR2 SW20 |
2000 Nissan 200SX S14 |
2000 Nissan 200SX S15 |
2001 Nissan 200SX S15 |
2002 Nissan 200SX S15 |
Specifications
SKU | id-1700.60.14.14.4 |
Brand | INJECTOR DYNAMICS |
Shipping Weight | 3.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.150m |
Shipping Length | 0.200m |
