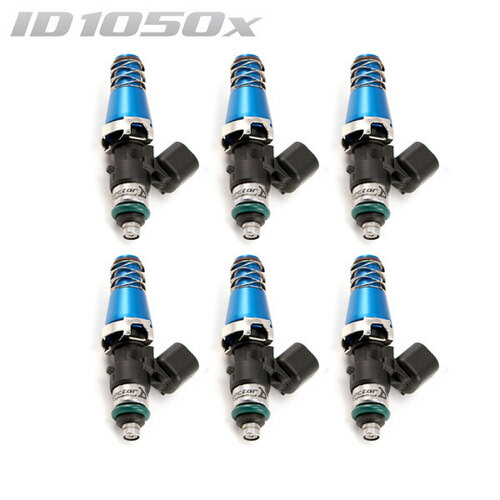

ID1050-XDS Injectors Set of 6, 60mm Length, 11mm Blue Adaptor Top, 14mm Lower O-Ring/11mm Machine O-Ring Retainer - Honda NSX
ID1050-XDS Injectors Set of 6, 60mm Length, 11mm Blue Adaptor Top, 14mm Lower O-Ring/11mm Machine O-Ring Retainer - Honda NSX
SKU: id-1050.60.11.14-O.6

ID1050-XDS Injectors Set of 6, 60mm Length, 11mm Blue Adaptor Top, 14mm Lower O-Ring/11mm Machine O-Ring Retainer - Honda NSX

ID1050-XDS

$1,372.80

or 4 payments of $343.20 with Info



In Stock


Calculate Shipping


Australia wide rate - $20.00 (ETA: 3 days)


Item: ID1050-XDS Injectors Set of 6, 60mm Length, 11mm Blue Adaptor Top, 14mm Lower O-Ring/11mm Machine O-Ring Retainer - Honda NSX

The ID1050x is the evolution of the ID1000, and the latest addition to the X-Series. It is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport, and is the result of lessons learned during development of the ID1300x, and ID1700x. Like the ID1300x and ID1700x, the ID1050x is not a modified production component. It is a built to spec motorsport injector, offering optimization of critical operating parameters important to you, the motorsport tuner. Compared to the original ID1000, the ID1050x offers numerous improvements, and is sure to become the new reference.



Features:

  • Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels.
  • Compact body allows fitment in 200+ applications, including current and future engines utilizing short body injectors.
  • Improved internal flow path increases output by 5% without sacrificing low flow performance.
  • Stronger magnetic circuit offers stable operation up to 10 bar.
  • Replaceable inlet filter extends service life.



Note: Some vehicles may have multiple possible injector sizes available. Always compare sizing provided in the listing (length and O-Ring size) against injectors currently fitted to vehicle.

Specifications

  • Nominal Flow Rate: 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
  • Maximum Differential Fuel Pressure: 10.0 Bar (145.0 psi)
  • Fuel Compatibility: Compatible With All Known Fuels
  • Electrical Connector: USCAR

Vehicle Fitment

Vehicle Fitment is provided as a guide only to narrow down results. Please check listing for any additional information (measurements, specifications, additional notes) which may affect compatibility or ask for assistance.
1991 Honda NSX NA
1992 Honda NSX NA
1993 Honda NSX NA
1994 Honda NSX NA
1995 Honda NSX NA
1996 Honda NSX NA
1997 Honda NSX NA
1998 Honda NSX NA
1999 Honda NSX NA
2000 Honda NSX NA
2001 Honda NSX NA
2002 Honda NSX NA
2003 Honda NSX NA
2004 Honda NSX NA
2005 Honda NSX NA

SKU id-1050.60.11.14-O.6
Brand INJECTOR DYNAMICS
Shipping Weight 3.0000kg
Shipping Width 0.300m
Shipping Height 0.150m
Shipping Length 0.200m
