SKU: id-1700.60.11.14-O.6

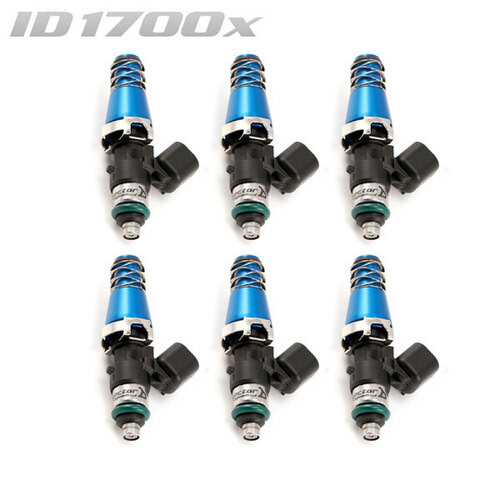

ID1700-XDS Injectors Set of 6, 60mm Length, 11mm Blue Adaptor Top, 14mm Lower O-Ring/11mm Machine O-Ring Retainer - Honda NSX

ID1700-XDS

$2,957.90


In Stock


Calculate Shipping



Australia wide rate - $20.00 (ETA: 3 days)

Description

Item: ID1700-XDS Injectors Set of 6, 60mm Length, 11mm Blue Adaptor Top, 14mm Lower O-Ring/11mm Machine O-Ring Retainer - Honda NSX

The ID1700x is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. The ID1700x was designed to fill the gap between the ID1300x and the ID2000, and like the ID1300x, it features corrosion resistant internals making it compatible with all known automotive fuels.
A unique magnetic circuit, resulting from a lengthy development program, makes the ID1700x immune to voltage and pressure sensitivity problems that plague other high impedance high flow injectors. The ID1700x excels at high pressures typical of current automotive systems, and will perform flawlessly in these applications.

The ID1700x was designed to be an all fuel compatible injector, capable of very high flow rates. As such, it will most often be used to deliver E85 to boosted engines, or occasionally, gasoline in extreme high horsepower applications. Neither of these applications requires extended linearity at low flow rates, and so this was given a proportionately lower priority during the design process.

The ID1700x will deliver flawless stoichiometric idle and cruise mixtures on E85, but like the ID2000, should not be expected to do so on gasoline.

If you need flawless drivability on gasoline, the ID1300x will provide this, and is capable of approximately 150hp per injector on E85.



Note: Some vehicles may have multiple possible injector sizes available. Always compare sizing provided in the listing (length and O-Ring size) against injectors currently fitted to vehicle.

Specifications

  • Nominal Flow Rate: 1725cc/min @ 3.0 Bar (43.5 psi) Using Iso-Octane at 52 Degrees C (125 Degrees F)
  • Maximum Differential Fuel Pressure: 7.0 Bar (101.5 psi)
  • Fuel Compatibility: Compatible with Methanol/Ethanol/All Known Hydrocarbon Fuels.
  • Electrical Connector: USCAR

Vehicle Fitment

Vehicle Fitment is provided as a guide only to narrow down results. Please check listing for any additional information (measurements, specifications, additional notes) which may affect compatibility or ask for assistance.
1991 Honda NSX NA
1992 Honda NSX NA
1993 Honda NSX NA
1994 Honda NSX NA
1995 Honda NSX NA
1996 Honda NSX NA
1997 Honda NSX NA
1998 Honda NSX NA
1999 Honda NSX NA
2000 Honda NSX NA
2001 Honda NSX NA
2002 Honda NSX NA
2003 Honda NSX NA
2004 Honda NSX NA
2005 Honda NSX NA

Specifications

SKU id-1700.60.11.14-O.6
Brand INJECTOR DYNAMICS
Shipping Weight 3.0000kg
Shipping Width 0.300m
Shipping Height 0.150m
Shipping Length 0.200m
