Description

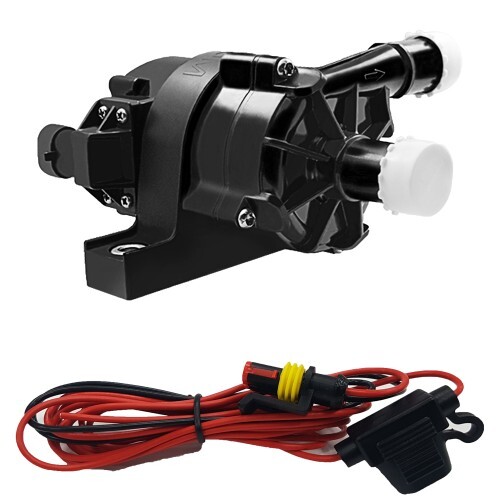

EBP25 - Electric Booster Pump - Brushless 12V Kit (Part #9025)

The EBP25 Brushless Electric Booster Pump is more compact, more powerful, lightweight and offers;

Higher flow capacity: 27.0 L/min @ 10 kPa
Higher head pressure than the EBP25 model it supersedes
Lower current draw
Mounting bracket
Reverse polarity protection
Overvoltage protection
Automatic dry-running protection – no liquid in pump, pump will enter idle protection within 5 seconds. Auto shut-down after 120 seconds!

This unit defies its capacity “punching well above its size” with the exceptional features this smart brushless booster pump offers! The Brushless EBP25 Electric Booster Pump complements the versatile Davies Craig EBP15, EBP23 and EBP40 (litre/min) booster pumps which have drawn high acclaim nationally and globally.

This Brushless EBP25 Electric Booster Pump will continue the excellent standing held in the turbocharger, water-to-air intercooler markets and will enhance that reputation moving to the next level. The EBP25 has a brushless motor, centrifugal pump guaranteeing longer life over any brushed motor varieties.

Its compact design ensures versatility with the EBP suited to a variety of automotive, solar, recreation, mobile home, marine, domestic and water reticulation applications. This booster pump can be used to enhance OEM engine cooling systems, improving coolant circulation especially in LPG conversions and greatly assisting the management of engine temperatures.

This EBP replaces the EBP25 - Brushed Motor, Parts Numbers 9005 & 9105. To assist the transition, we offer seperatley a cross-over cable so that this new EBP25 - Brushless will plug straight into your existing wiring system, #19520

KIT CONTENTS
DESCRIPTION	UNITS
EBP25 - Electric Booster Pump	1
EBP25 wiring loom (AMP Plug)	1

TECHNICAL SPECIFICATIONS
Motor	12v Brushless
Operating Voltage	8v to 20v DC
Rated Current	2.1 Amps
Flow rate @ 12v	27.0 L/min @ 10 kPa
Head of delivery	4.5m @ rated voltage
Environment Temperatures	-40°c to 125°c (-40°F to 257°F)
Liquid Temperatures	-40°c to 120°c (-40°F to 248°F)
Pump Design	Recirculating Centrifugal
Motor Life	10 years+@ 80°c
Weight	650 grams (1.43lb) including mounting bracket
Body Material	PPS
Insulation grade	Level H (180°c/356°F)
Burst Pressure	250 Kpa (36psi)
Inlet & Outlet Size	19mm (¾”)
IP Rating	IP67
Warranty	2 Years, 40,000km or 2000 hours

Comparison Table EBP25 Brushed Motor vs EBP25 Brushless

Specification		EBP25 - Brushed	EBP25 - Brushless
Part Numbers		9005 & -9105	9025
Motor		Brushed	Brushless
Weight		0.995kg	0.65kg
Material		PPA	PPS
Pump Design		Recirculating Centrifugal	Recirculating Centrifugal
Colour		Black	Black
Mounting Bracket		No	Yes
Rated Voltage		12V	12V
Operating Voltage	Min(V)	9	8
Operating Voltage	Max(V)	15	20
Maximum Current	A	3.5	2.31
Operating Temperature	Min(°C)	-40	-40
Operating Temperature	Max(°C)	120	120
Burst Pressure	kPa	250	400
Rated Flow @ 10kPa	L/min	25	27
Fit Hose Size	mm	19	19

This Brushless EBP25 Electric Booster Pump will continue the excellent standing held in the turbocharger, water-to-air intercooler markets and will enhance that reputation moving to the next level.
