DAVIES CRAIG EBP40 - ELECTRIC BOOSTER PUMP (12V) (9040)

Calculate Shipping

Australia wide rate - $30.00 (ETA: 3 days)

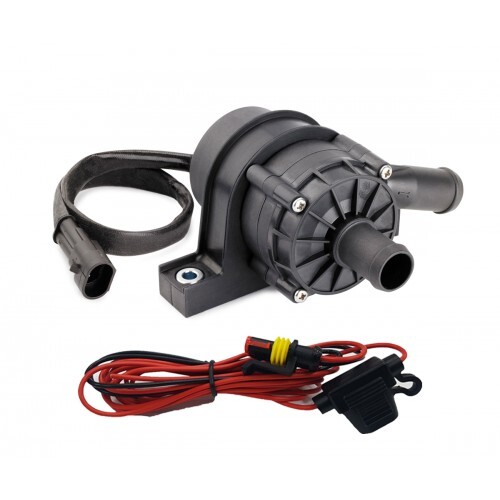

Electric Booster Pump (EBP40 (Part #9040)

A high-performance brushless motor, magnetic-drive pump. Compact and versatile pump for a range of applications.

This high-performance 35 litre per minute, brushless, magnetically driven EBP has drawn high acclaim globally for its diversity of applications. These include booster for car heater and LPG systems, solar and marine applications, water-cooled motorcycle, go-kart engines, turbo air/water intercoolers, caravans, motor homes and domestic irrigation.

The EBP is a recirculating pump which is ideal for a ‘closed system’ similar to an automotive cooling system; it is not self priming’. For optimum coolant flow control, use either of Davies, Craig Thermatic Switches (#0400, #0444 or #0500).

The EBP40 is offered in both 12 and 24 Volt (Part #9041)

KIT CONTENTS
EBP40 - Electric Booster Pump	1
Mounting Bracket	1
EBP23, 25, 40 wiring loom (AMP Plug)	1

Technical Specifications
Motor	12V Brushless
Operating Voltage	9V to 15V DC
Max Current Draw	4.6 Amps
Pump Design	Recirculating * Centrifugal
Drive	Magnetic – No seals
Operating Temperature	-40C to +120C (-10F to +248F)
Burst Pressure	250Kpa (36PSI)
Max Flow Rate @ 0 Bar	35L/min (9.24 gal/min)
Weight	570 grams (1.25 lbs)
Head Pumping Pressure	0.85 Bar 12.32 PSI
Fits Hose	19mm (3/4" Inch)
Self Priming	No, none of our pumps are self-priming
Max Head	8.5 meters
Pump Material	PPS/PA66
IP Rating	IP67
