DAVIES CRAIG EBP40 - ELECTRIC BOOSTER PUMP KIT (24V) (9041)
Description

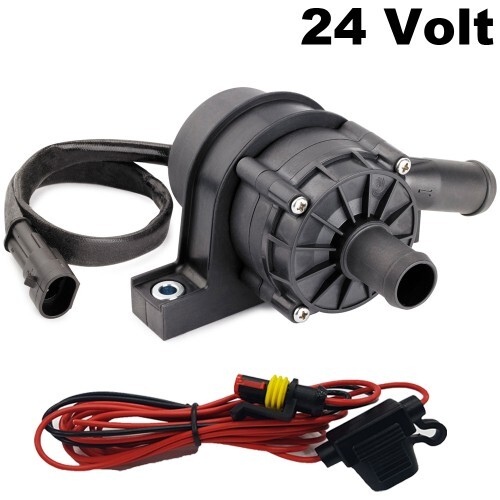

Electric Booster Pump Kit (EBP40) (Part #9041)
The EBP40 is a brushless 24 volt, high flow (37litres / 9.77 gallons per minute), magnetically driven water pump.
The EBP motor has no brushes to ever wear out and the pump is magnetically driven by the motor, which means that no shaft sealing is required.
The many EBP applications include: booster for car heater and LPG systems, solar pump applications, water cooled motorcycle, go-kart engines, turbo air / water intercoolers & household irrigation.
| KIT CONTENTS | |
| Description | Quantity |
Electric Booster Pump (EBP40) | 1 |
| EBP23, 25, 40 wiring loom (AMP Plug) *Note: wiring loom added to kit 1-Dec-2020 | 1 |
| Instructions | 1 |
| Technical Specifications | |
| Motor | 24V Brushless |
| Operating Voltage | 21V DC to 27V DC |
| Max Current Draw | 2.5 Amps |
| Pump Design | Recirculating * Centrifugal |
| Drive | Magnetic – No seals |
| Operating Temperature | -40C to +120C (-10F to +248F) |
| Burst Pressure | 250Kpa (36PSI) |
| Flow Rate | 37L/min (9.77 gal/min) |
| Head Pumping Pressure | 0.85 Bar 12.32 PSI |
| Weight | 570 grams (1.25 lbs) |
| Fits Hose | 19mm (3/4" Inch) |
| Self Priming | No, none of our pumps are self-priming |
| Max Head | 9 meters |
| Pump Material | PPS/PA66 |
| IP Rating | IP67 |
Optional Connector:
Part Number 19517 - WIRING PLUG ELECTRIC BOOSTER PUMP (EBP23 & EBP40)
Fits EBP Part Numbers:
- Part #9050 & #9051 - EBP23
- Part #9040 & 9041 - EBP40
Specifications
| SKU | daviescraig-dc9041 |
| Brand | DAVIES CRAIG |
| Shipping Weight | 13.0000kg |
| Shipping Width | 0.500m |
| Shipping Height | 0.200m |
| Shipping Length | 0.250m |
