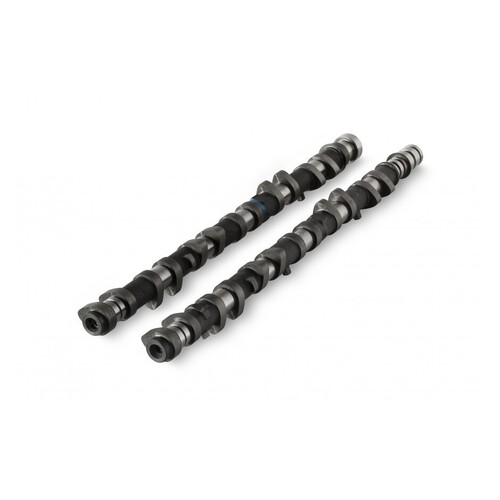

Kelford Cams V229-D Camshaft Set for (1JZ VVTi) - 272/278 Deg
KELFORD CAMS
Description
item: Kelford Cams V229-D Camshaft Set for (1JZ VVTi) - 272/278 Deg
Description
The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.
- 272/278 Degrees advertised duration. 9.95mm/9.95mm lift
- 272/278 Degree racing camshafts. These are our most popular cams for a vast range of motorsport applications. Requires valve spring upgrade, KVS02-BT
Specifications
Engine Make: | Engine Model: | Part Number: | |||||
TOYOTA | 1JZ VVTi | V229-D | |||||
Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
Cam Lift: | Intake: | 10.20mm | Exhaust: | 10.20mm | |||
Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
Nett Valve Lift: | Intake: | 9.95mm | Exhaust: | 9.95mm | |||
Advertised Duration @ | 0.10mm | Intake: | 272 | Exhaust: | 278 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 236 | Exhaust: | 240 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 4 ATDC | EVO: | 60 BBDC | ||
IVC: | 34 ABDC | EVC: | 0 TDC | ||||
Suggested Centre Lines: | Intake: | VARI | Exhaust: | 120 | |||
VALVE | Lift @ TDC | Intake: | 0.68mm | Exhaust: | 0.94 |
compatibility
- 1995-On Toyota Chaser/Soarer/Supra
Specifications
SKU | kelford-V229-D |
Brand | KELFORD CAMS |
Shipping Weight | 25.0000kg |
Shipping Width | 0.600m |
Shipping Height | 0.200m |
Shipping Length | 0.250m |
