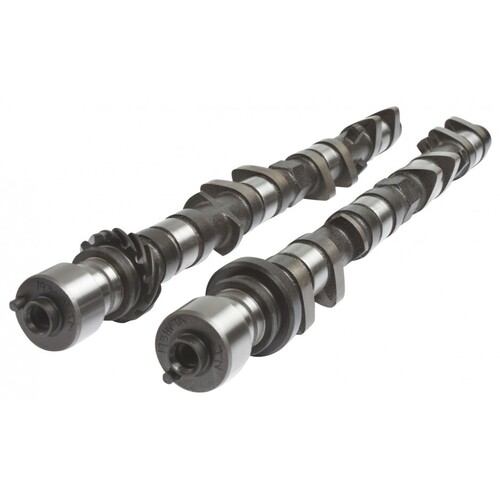

Kelford Cams 193-B Street Camshaft Set for (4A-GE 16V) - 284/278 Deg
KELFORD CAMS
Description
item: Kelford Cams 193-B Street Camshaft Set for (4A-GE 16V) - 284/278 Deg
Description
The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.
- 284/278 Degrees advertised duration. 9.20mm/8.50mm lift
- Rally cams for good midrange power in mild engines.
Specifications
Engine Make: | Engine Model: | Part Number: | |||||
TOYOTA | 4A-GE 16v | 193-B | |||||
Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
Exhaust: | 0.30mm | Set | COLD | at the | CAM | ||
Cam Lift: | Intake: | 9.45mm | Exhaust: | 8.80mm | |||
Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
Nett Valve Lift: | Intake: | 9.20mm | Exhaust: | 8.50mm | |||
Advertised Duration @ | 0.30mm | Intake: | 284 | Exhaust: | 278 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 244 | Exhaust: | 236 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 18 BTDC | EVO: | 44 BBDC | ||
IVC: | 46 ABDC | EVC: | 12 ATDC | ||||
Suggested Centre Lines: | Intake: | 104 | Exhaust: | 106 | |||
VALVE | Lift @ TDC | Intake: | 2.70mm | Exhaust: | 2.06 |
compatibility
- 1983-1985 Toyota Carina AA63 (Japan only)
- 1985-1988 Toyota Carina AT160 (Japan only)
- 1988-1992 Toyota Carina AT171 (Japan only)
- 1983-1985 Toyota Celica AA63
- 1985-1989 Toyota Celica AT160
- 1984-1987 Toyota Corolla saloon, FX AE82
- 1983-1987 Toyota Corolla Levin AE86
- 1987-1993 Toyota Corolla AE92
- 1983-1985 Toyota Corona AT141 (Japan only)
- 1985-1988 Toyota Corona AT160 (Japan only)
- 1984-1989 Toyota MR2 AW11
- 1984-1987 Toyota Sprinter AE82 (Japan only)
- 1983-1987 Toyota Sprinter Trueno AE86 (Japan only)
- 1987-1992 Toyota Sprinter AE92 (Japan only)
- 1986-1993 Toyota Corolla GLi Twincam/Conquest RSi AE82/AE92 (South Africa)
- Chevrolet Nova (based on Corolla AE82)
- 1990-1992 Geo Prizm GSi (based on Toyota AE92 chassis)
Specifications
SKU | kelford-193-B |
Brand | KELFORD CAMS |
Shipping Weight | 25.0000kg |
Shipping Width | 0.600m |
Shipping Height | 0.200m |
Shipping Length | 0.250m |
