HPD Turbo Kit FOR TOYOTA LANDCRUISER 100 SERIES 1HDFTE 1998-2006

HPD GTX Turbo upgrade kits are an excellent way to gain safe and reliable power and torque for your 4.2L turbo diesel 1HD-FTE 100 series land cruiser.

We use a Garrett turbocharger combined with braided oil and water lines, HPD custom manufactured 3" air intakes. Our turbo kit i directly bolts on to the standard exhaust manifold eliminating the need for an aftermarket turbo exhaust manifold saving you money.

EXHAUST:
This Turbo kit has been designed to use the factory exhaust flange, so you can use you existing 3 inch dump pipe if you already have one.

INTERCOOLING:
Upgrading your factory intercooler  is important if you are looking to run more than that 13-15psi of boost, however which intercooler to choose depends on a couple of things.
If you intend on towing a large load, live in a hot arid climate or decide to run a larger turbo option, then we suggest you should run our series 2 intercoolers as they are bigger and capable of a larger volume of air with a higher thermal efficiency operating at these more aggressive conditions.
Below is a link to the 2 intercoolers offered in this kit so you can make an informed decision on which combination is right for you.

SERIES 1 FRONT MOUNT INTERCOOLER -  IK-100-FTE-C-F - WINCH COMPATIBLE FRONT MOUNT

SERIES 2 FRONT MOUNT INTERCOOLER -  IK-100-FTE-S2-F - WINCH COMPATIBLE FRONT MOUNT

TURBOS:
The turbocharger that is supplied as the base option for the 100 series 1HD-FTE turbo kit is the GTX2967R by Garrett.
We have found that this turbocharger compliments the characteristics of the 4.2ltr 1HD-FTE motor very well. Combining a fast spool rate with reliable power and substantial torque we feel like this option will satisfy 90% of customers looking for better towing capability, highway speed and general 4wding application. These turbos move some serious air speed and are capable of running from 20-30psi all day. Not only are they capable of higher boost application, hold boost longer, have a billet compressor wheel and anti-surge slots meaning Better performance across the board.
PLEASE NOTE: SHOULD YOU DECIDE TO RUN A LARGER GTX TURBOCHARGER YOU WILL REQUIRE THE CORRECT SUPPORTING MODIFICATIONS TO SUPPORT THE ADDED DIESEL, LOAD AND POWER. IF YOU HAVE ANY QUESTIONS REGARDING THIS PLEASE CALL 08 8299 0320 AND SPEAK TO ONE OF OUR FRIENDLY SALES MEMBERS.

GTX2867 GEN II  - LINK - This turbo option with series 2 intercooler and 3" exhaust system you can expect between 150-170awkw (with supporting mods) on standard tyres.

NOTE: For these results you will require tuning module, we reconmend Unichip for best results, HPD series 2 front mount intercooler kit, turbo back 3" exhaust, injector upgrade, boost controller, heavy duty clutch (if manual) or valve body upgrade in automatics. Results may vary from vehicle to vehicle. Information provided here is meant as a guide only as there are many factors that may effect overall power output.

please note the options below as building custom turbo kits to your needs will be more accurate with the more information provided.

if you have any questions please feel free to contact us on 08 8299 0320

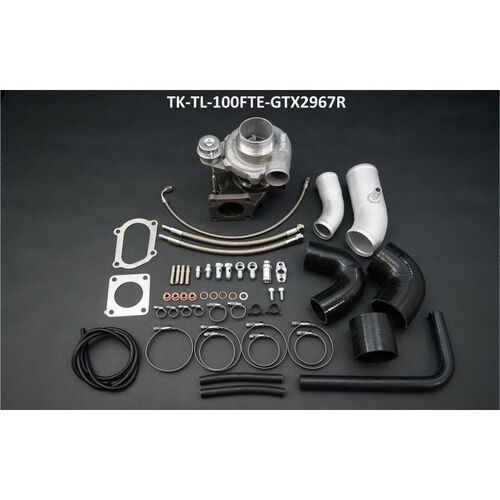

Kit Features:

• Garrett GTX2867R GEN II Base Turbocharger (with upgrades available)
• Braided oil & water lines
• Aluminum mandrel bent intake piping
• Custom HPD exhaust housing
• Optional Upgrades below (intercooler, turbo, exhaust, boost controller and oil catch can)
