SKU: PSR-TD06H25G-4B11

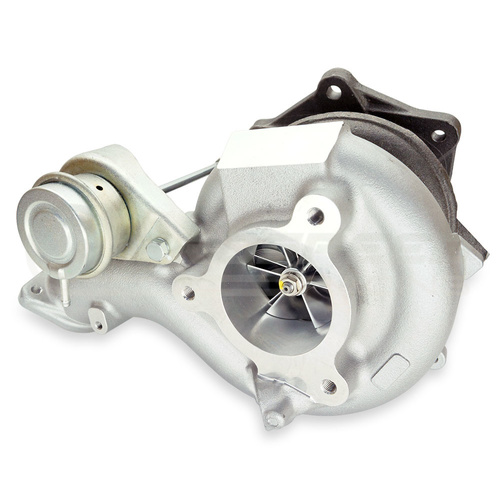

PSR 550hp TD06H 25G Billet Bolt On Turbo for Mitsubishi Evo X
Description
item:PSR 550hp TD06H 25G Billet Bolt On Turbo for Mitsubishi Evo X
The PSR TD06H-25G Turbo is 100% bolt-on and has potential to boost your Evolution X to blistering fast 550 HP! This turbo is designed for mid to high power band! Great for street and track applications. The 11-Blade turbine wheel offers high flow, quick spool characteristics and when coupled with the billet 6+6 blade compressor wheel means your Evo X will gain a huge boost in usable horsepower. The turbine housing comes ported and polished for even faster flow! The turbo includes an upgraded 21 PSI (1.5 Bar) wastegate actuator for maximum performance and quality above all else!
Turbo Features:
- Size: TD06H-25G
- Bearing Type: Journal
- Compressor Wheel Type: Billet 6+6 Blade
- Compressor Wheel Inducer: 61.4 mm
- Compressor Wheel Exducer: 82 mm
- Turbine Wheel Type: 11 Blade High Flow
- Turbine Wheel Exducer: 67.1 mm
- Turbine Wheel Exducer: 58.8 mm
- Actuator: 1.5 Bar / 21 psi
- Turbine Housing: 12 cm2
- Max. Power: 550 HP
Notes:
- Requires OEM water and oil lines for installation either from old OEM turbo or purchased new from Mitsubishi
- Can be installed to Lancer Ralliart vehicles, however new turbo down-pipe and intake is required.
Vehicle Fitment:
- 2007-2015 Mitsubishi Evo X
Specifications
SKU | PSR-TD06H25G-4B11 |
Brand | PSR |
Shipping Weight | 32.0000kg |
Shipping Width | 0.700m |
Shipping Height | 0.250m |
Shipping Length | 0.400m |
