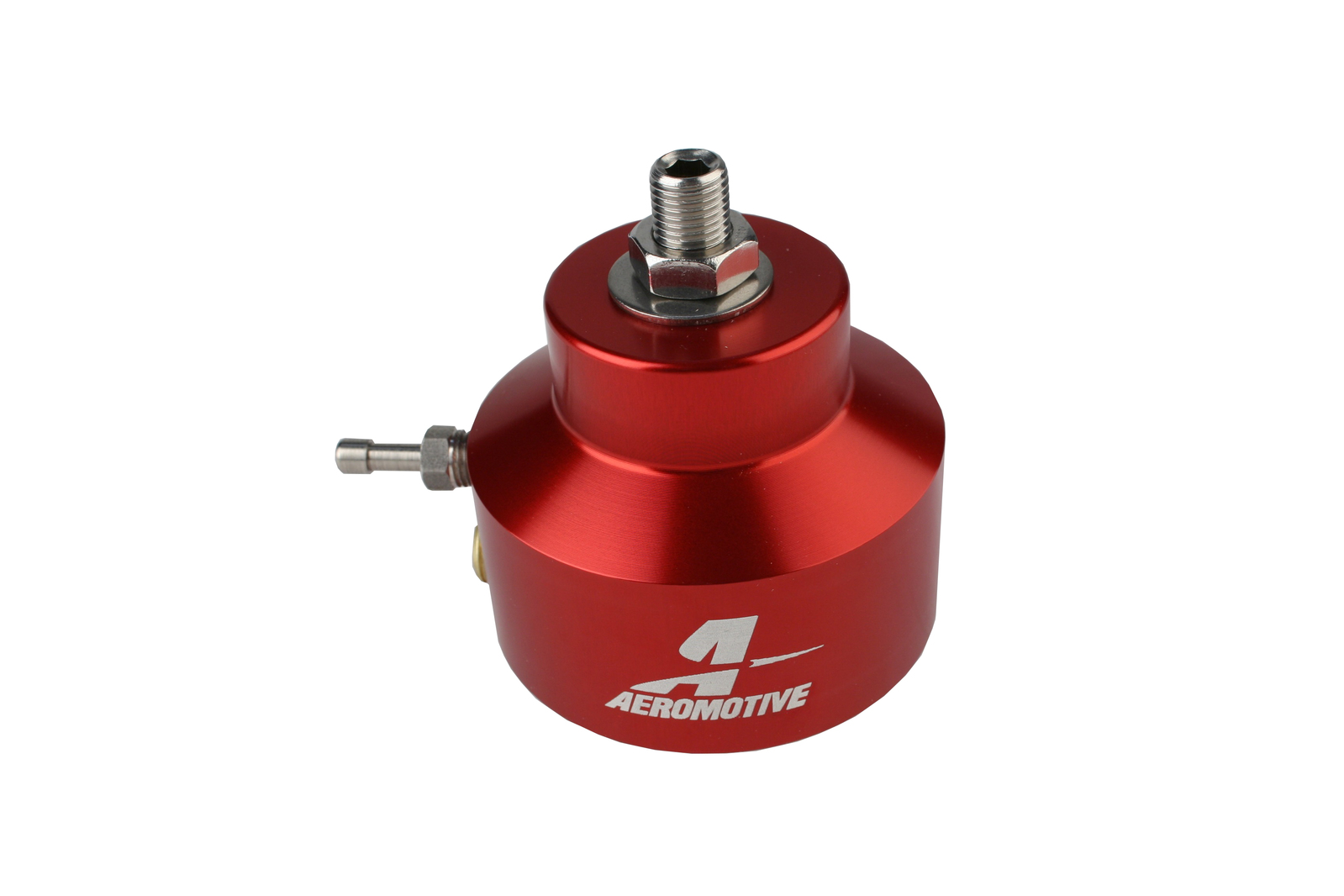

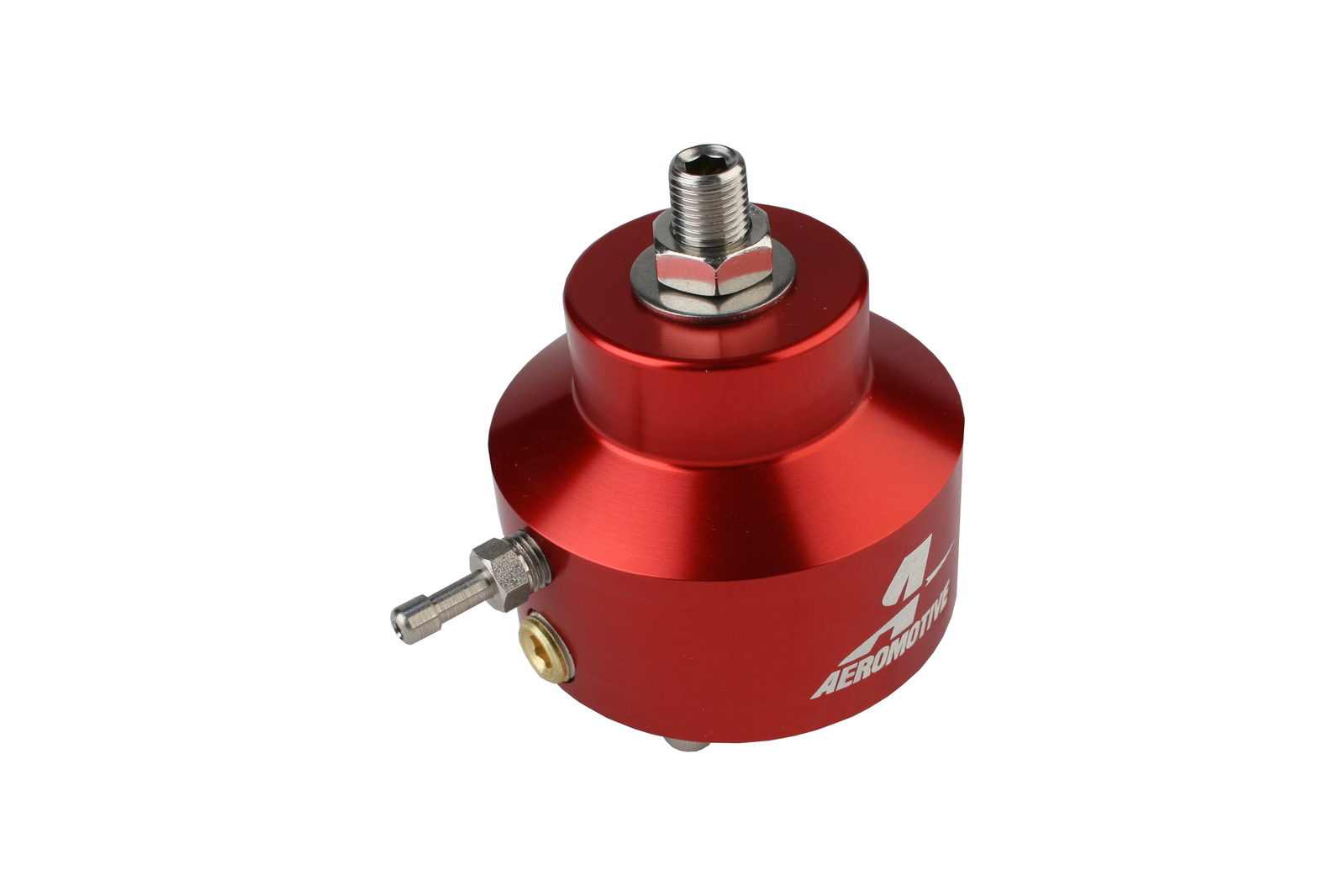

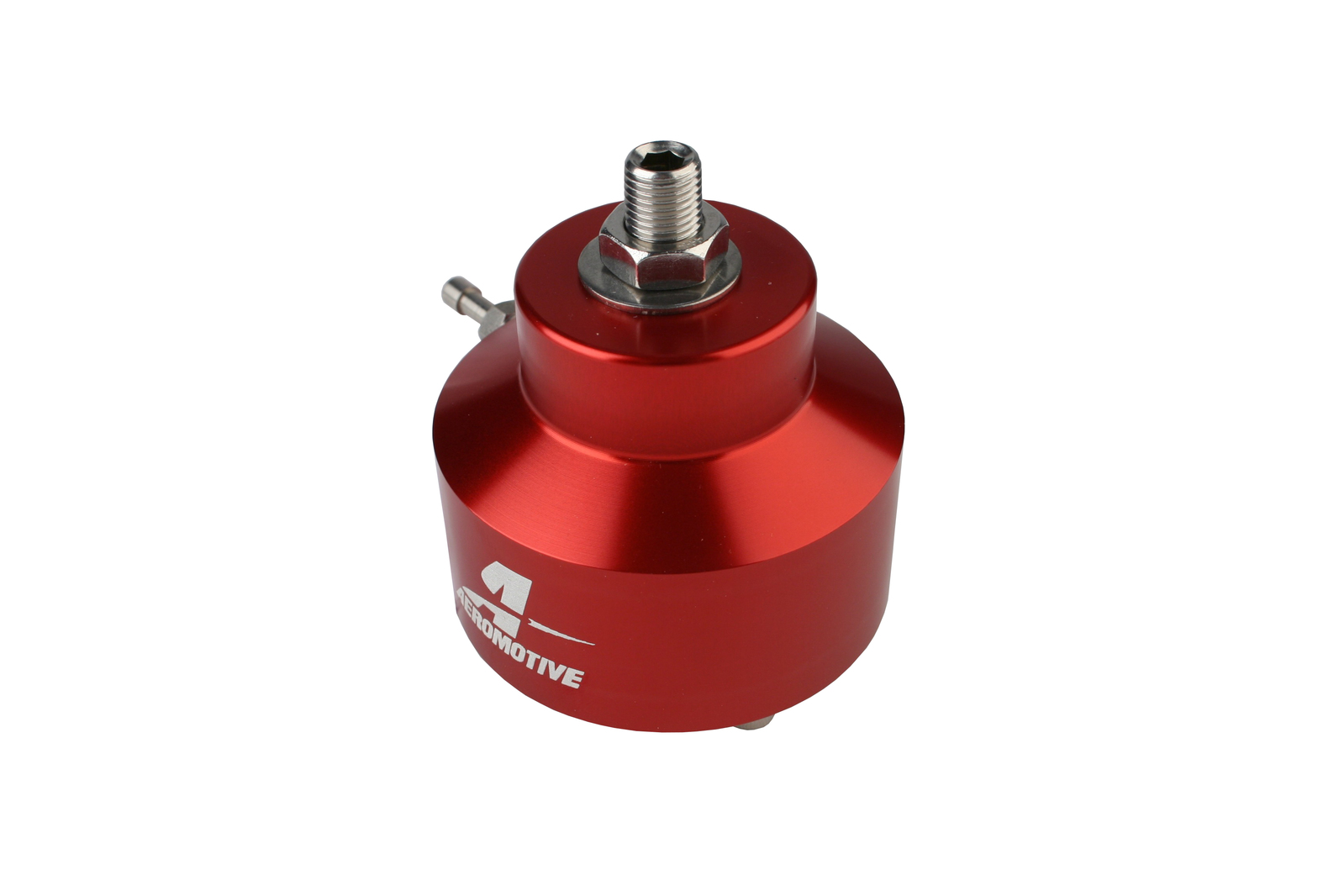

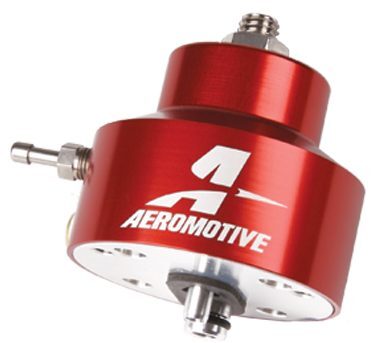

AEROMOTIVE Ford Rail Mount Regulator(13103)

Description

Adjustable billet fuel pressure regulators designed to handle the demands of the Ford 4.6L, 5.0L and 5.4L engines. Installs easily on the stock factory fuel rail.

(see applications below)

• Adjustable from 30-70 PSI.
• Fuel pressure rises on a 1:1 ratio when referencing boost.
• 1/8? NPT gauge port.
• Stainless steel spring, custom-designed for precise fuel control.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
• Installation kit includes O-rings and gaskets.
• P/N 13102 94 – 98 1/2 4.6L & 94 – 95 5.0L
• P/N 13103 86 – 93 5.0L

Additional information

Mounting Configuration: External

P/N 13103 Ford Rail Mount EFI Adjustable FPR
3-Bolt Mount, Adjustable FPR Vacuum/Boost Reference

Adjustable billet fuel pressure regulators designed to handle the demands of the Ford 5.0L & some 5.4L engines. Installs easily on the stock factory fuel rail.

• 86 – 93 5.0L
• Adjustable from 30-70 PSI.
• Fuel pressure rises on a 1:1 ratio when referencing boost.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
• 1/8? NPT gauge port.
• Stainless steel spring, custom-designed for precise fuel control.
• Installation kit includes O-rings and gaskets.

See also:

• 94 – 98 1/2 4.6L
• 94 – 95 5.0L
