SKU: aeromotive-12309

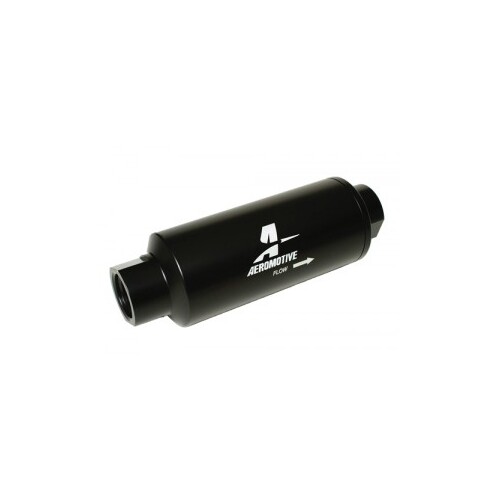

AEROMOTIVE Marine Inlet, ORB-12 Fuel Filter(12309)
AEROMOTIVE marine product 12309
Description
Description
- High-flow, 100-micron stainless steel (coarse) cleanable element.
- Flows 2,000 lb/hr with a pressure drop of less than .15 PSI.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- ORB-12 ports. Fittings available to adapt these filters to AN-12, -10 line sizes. (see Fittings & Adapters)
- 7? long x 2.5? diameter For additional information on this product, see
Additional information
Weight | 1.63 lbs |
---|---|
Dimensions | 8.5 × 4.75 × 4 in |
Mounting Configuration: External
CARB or EFI | Power Adder | FUEL | Horsepower |
---|
P/N 12309: Marine Inlet, ORB-12 Fuel Filter
- High-flow, 100-micron stainless steel (coarse) cleanable element.
- Flows 2,000 lb/hr with a pressure drop of less than .15 PSI.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- ORB-12 ports. Fittings available to adapt these filters to AN-12, -10 line sizes. (see Fittings & Adapters)
- 7? long x 2.5? diameterFor additional information on this product, see
Specifications
SKU | aeromotive-12309 |
Brand | AEROMOTIVE |
Shipping Weight | 10.0000kg |
Shipping Width | 0.400m |
Shipping Height | 0.200m |
Shipping Length | 0.300m |
