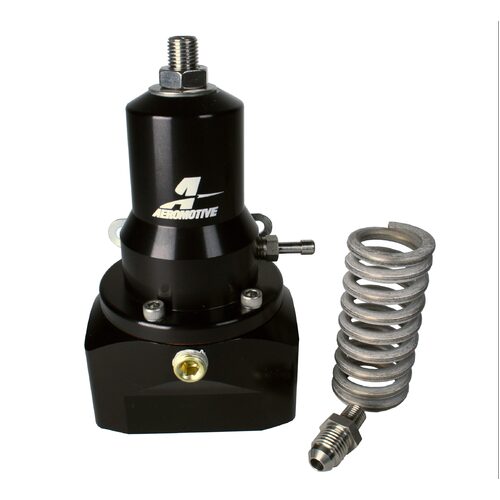

AEROMOTIVE Extreme Flow EFI Regulator(13137)
AEROMOTIVE fuel pressure regulator 13137
Description
Description
Our ALL-NEW Extreme-Flow EFI Regulator now comes with -12 ports! It’s designed for use with Belt or Hex Drive Fuel Pumps. Other benefits include:
- Compact, 2-Port Body with dual ORB-12 inlet/outlet ports and one ORB-12 return port.
- 0.500? high-flow valve/seat, able to handle 7-32 GPM Fuel Pumps.
- Gasoline, ethanol, alcohol and diesel compatible.
- Dual springs expand the range of operating pressure while maintaining a low profile regulator with reduced weight.
- This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.
- Standard spring (installed) supports 30-75 PSI base fuel pressure.
- High Pressure spring (included) supports 75-120 PSI base fuel pressure.
- Supports vacuum and boost reference on a 1:1 ratio with PSI.
Additional information
Weight | 1.4 lbs |
---|---|
Dimensions | 5.5 × 5.5 × 2.5 in |
Mounting Configuration: External
CARB or EFI | Power Adder | FUEL | Horsepower |
---|
P/N 13137 Extreme Flow EFI Regulator
For Belt/Hex Drive Fuel Pumps and EFI Engines
- ORB-12 Inlet/Outlet and Return Ports
- Extreme Flow Capability
- Gasoline, ethanol, alcohol and diesel compatible.
- Wide Base Pressure Range 30-120 PSI
- This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.
Specifications
SKU | aeromotive-13137 |
Brand | AEROMOTIVE |
Shipping Weight | 10.0000kg |
Shipping Width | 0.400m |
Shipping Height | 0.200m |
Shipping Length | 0.300m |
