Brand: Trust GReddy

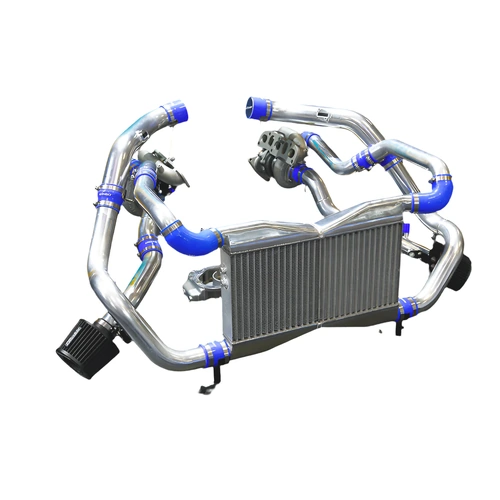

Product: T517Z Bolt-On Turbo Kit - Fairlady Z Z34
Part Num.: 11520097

SPECIFICATIONS
Included:
- T517Z-8CM2 twin turbochargers (Impeller diameter compressor side 68mm, turbine side 58mm)
- P380 actuator type
- Exhaust Manifold (Forged Stainless Lost Wax 4mm thick)
- Turbine Outlet (Forged Stainless Lost Wax 4mm thick)
- SUS Front Pipe
- Intercooler Type 16 X 2
- Aluminum Compression Tube 50~70mm
- Aluminum Suction Tube 60mm
- Airinx intake Kit S60
- Oil Pan
- Washer Tank
- OEM Exhaust Gaskets
JAN Code: 4991995664529

PRODUCT NOTES
- ECU, settings as well as dyno tuning are not included and will need to be purchased separately.
- Injectors and Fuel Pump need to be upgraded
- Oil cooler is recommended to be installed with this kit (Part Number: 12024638)
- Due to tight engine bay it is recommended to install kit with engine removed
- Engine internals (forged pistons) need to be reinforced for restrictor removal and goal of over 500ps.
- Modification required to engine mount, front member cover, bumper and minor harness work
Test Vehicle Specs:
2009 NISMO
-Normal Engine
-R35 OEM Fuel Injectors
-AEM Fuel Pump
-Nismo version muffler
-R35 Pressure Sensor
-ECUTEK Settings
-Boost between 0.6K~0.4K
-Intercept 3000rpm/0.56K
-Included Restrictors installed, if removed boost will increase to 0.8K.

COMPATIBILITY NOTES
- Cannot be used on Left Hand Drive applications
- Can be used with OEM Catalyzers
