GenII Rotated V-Band Turbo Kit Suit Precision Turbo for Subaru WRX STI 94-07/FXT 97-08/LGT 89-03

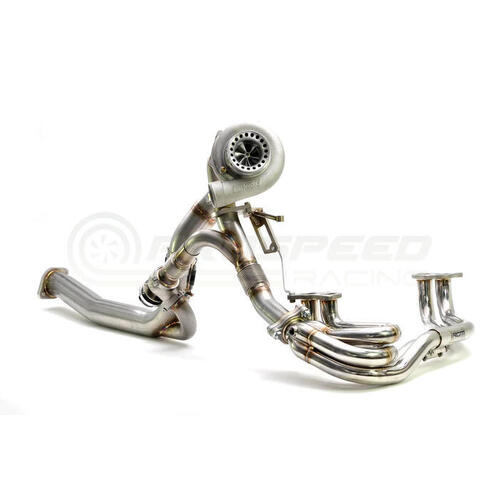

Note: Images show optional headers, turbo and wastegate which are sold separately.

RCM's twisted turbo up/downpipe kit was designed in house to combat the problem of a lack of space around the Impreza turbochargers standard position which ultimately limits the size of turbocharger which can be fitted to the Impreza range. This in turn caps the potential power that the car is able to produce. Our Twisted Turbo kit turns the turbo position through 45 degrees which allows for a much taller and wider unit to be installed for big power gains.

As with all of our parts our kit is built to last and has been developed over a period of years in order to perfect its performance. Built from high grade stainless steel and utilising state of the art production methods the RCM Twisted turbo kit offers high levels of strength and rigidity to ensure durability over many years. However its ingenious slip jointed downpipe also allows for a degree of movement under extreme heat which reduces the risk of damage to the pipework and welds.

When used in conjunction with a Precision turbo and other supporting modifications such as forged engine, ECU remap, front mounted intercooler etc this kit can easily support around 700bhp.

This kit suits a V-Band Inlet Precision Turbo and External 44mm/45mm Wastegate which is plumbed into the down pipe.

Features:

• For use with the latest Precision turbos
• V-Band Inlet, V-Band Outlet
• Mounting bracket and installation hardware supplied
• Compatible with RCM/Turbosmart/GFB 45mm Wastegate (not included)
• Compatible with RCM/PSR/Tomei 3-Bolt Unequal and Equal length exhaust manifolds (not included)
• External 'screamer' pipe included

Kit Includes:

• RCM Rotated Turbo Up Pipe
• RCM Rotated Turbo Down Pipe
• RCM Rotated Turbo Wastegate Inlet and Outlet Pipe (Plumb Back)
• Turbo Supporl Bracket
• Other Installation Hardware

Notes:

• Headers are not included and sold separately
• Turbo is not included and sold separately
• Wastegate is not included and sold separately

Additional fabrication and hardware are required to complete installation including but not limited to:

• Intercooler Piping
• Turbo Intake Piping
• Turbo Oil/Water Lines
• Vacuum Lines

Vehicle Fitment:

Refer to above notes.

• 1994-2000 Subaru WRX
• 2001-2007 Subaru WRX
• 1994-2000 Subaru STI
• 2001-2007 Subaru STI
• 1997-2002 Subaru Forester GT
• 2003-2008 Subaru Forester XT
• 1993-1997 Subaru Liberty RS
• 1998-2003 Subaru Liberty GT
