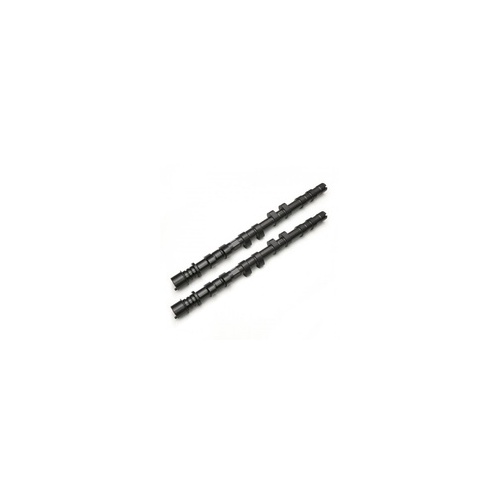

Stroker R2 Billet Camshafts FOR EVO 9

NOW IN BILLET - AVAILABLE FROM APRIL

We worked with English Racing on this profile to offer the 2.2-2.4 lower reving engines with mivec control a profile that would allow for more air volume in the cylinder to help fill the larger displacement engines and make more midrange and top end power. The 6009R2 is a high lift very aggressive profile with a short overall duration to keep a lower usable rpm band. The 6009R2 is designed to rev between 4000-8500 rpms and should be used with a stroked engine or added displacement engine. The peak lift of 12.1mm intake and 11.9mm exhaust will require upgraded valve springs and a titanium retainer with special attention to seal to retainer clearance. With the lift of this profile it is suggested to only use the 5041/5040 Ti retainer and spring kits due to valve seal to retainer clearance. The 5041 can be used to 40+psi and the 5040 to 32psi on the R2 profile at 8500rpms without float or flutter issues. The profile will work fine on the OEM Rocker Arm and the Zero-tick lifter or with the OEM lifter. We have seen gains of 25-30whp over the S2 profile on the stroked applications with much more possible when used with a ported head and aftermarket intake manifold. .
