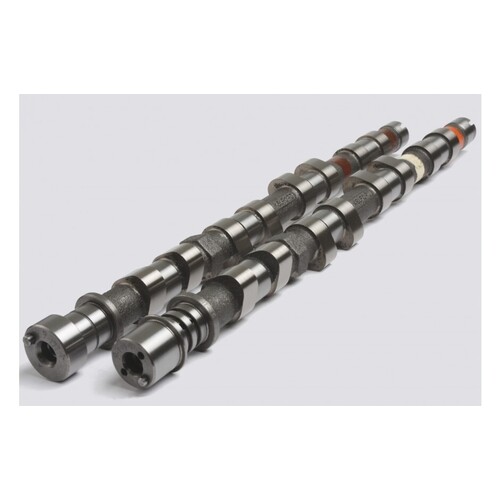

Kelford Cams 9-TX258 Camshaft Set for (Evo 9) - 258/264 Deg
KELFORD CAMS
Description
item: Kelford Cams 9-TX258 Camshaft Set for (Evo 9) - 258/264 Deg
Description
The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.
- 258/264 Degree advertised duration, 10.50mm lift
- Cams for fast street engines with stock or small turbocharger, or restrictor plate rally engines up to 8000 RPM and 25lb boost with our recommended valve springs.
Specifications
Engine Make: | Engine Model: | Part Number: | |||||
MITSUBISHI | 4G63 EVO 9 MIVEC | 9-TX258 | |||||
Valve Clearance: | Intake: | Set | at the | ||||
Exhaust: | Set | at the | |||||
Cam Lift: | Intake: | 6.07mm | Exhaust: | 6.07mm | |||
Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
Nett Valve Lift: | Intake: | 10.50mm | Exhaust: | 10.50mm | |||
Advertised Duration @ | 0.10mm | Intake: | 258 | Exhaust: | 264 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 208 | Exhaust: | 220 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 26 ATDC | EVO: | 41 BBDC | ||
IVC: | 54 ABDC | EVC: | 1 BTDC | ||||
Suggested Centre Lines: | Intake: | 130 | Exhaust: | 111 | |||
VALVE | Lift @ TDC | Intake: | 0.05mm | Exhaust: | 0.96 |
compatibility
- 2005-2007 Mitsubishi Evo 9 4G63 MIVEC
Specifications
SKU | kelford-9-TX258 |
Brand | KELFORD CAMS |
Shipping Weight | 25.0000kg |
Shipping Width | 0.600m |
Shipping Height | 0.200m |
Shipping Length | 0.250m |
