Radium Fuel Pressure Regulator Kit - Subaru STI 08-20

Item: Radium Fuel Pressure Regulator Kit - Subaru STI 08-20

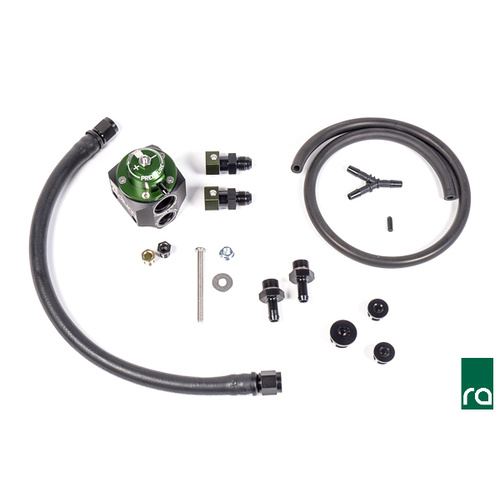

This kit is designed for use in the 2008-2020 Subaru WRX STi (EJ257 only) and replaces the OEM fuel pressure regulator and damper assembly, shown above. The factory STi fuel line routing uses a quasi dead-end system that circulates fuel through the regulator, bypassing the engine. Fuel is only routed to the engine when there is demand.

The Radium FPR kit replaces the factory regulator and re-routes fuel to cycle through the engine's rails before reaching the regulator and returning to the tank. This is the preferred fuel line routing by Subaru tuners trying to address stumbling issues. The Radium Fuel Pressure Regulator offers adjustment from 20psi-up with a 1:1 vacuum reference. Interchangeable orifices allow the user to tune the regulator for any fuel pump flow. For more information, .

The kit installs in the same location as the OEM fuel pressure regulator. Also included are vacuum hose and fittings to re-route the vacuum reference line from the #4 cylinder runner to the intake manifold plenum for a more stable vacuum signal. The optional pressure guage kit 20-0386 can be installed into the unused 8AN ORB port on the regulator, as shown above.

Also available are 2 options for the fuel pressure regulator top color. The green variation (20-0265-01) is shown above.
