Radium Fuel Hanger Plumbing Kit w/Cellulose Filter - Toyota Supra A80 93-02

Item: Radium Fuel Hanger Plumbing Kit w/Cellulose Filter - Toyota Supra A80 93-02

The plumbing kits include everything required to plumb the fuel system. This includes pre-made -10AN and -8AN PTFE feed lines that run from the fuel pump hanger through the fuel filter to an aftermarket 8AN ORB fuel rail (not included). The fuel lines clear the OEM fuel pump cover and do not require any cutting or drilling to get them past the fuel tank.

A -6AN fuel hose runs from the FPR (not included) to the pump hanger return port. The fuel lines run though these billet aluminum fuel brake line retainers.

The included Radium Engineering fuel filter mounts underneath the vehicle using a specifically designed MKIV Supra (JZA80) bolt-on billet mount.

Depending on the kit selected (-01,-03,-05), the fuel filter will be assembled with 1 of 3 different elements. Go for more filter element information.

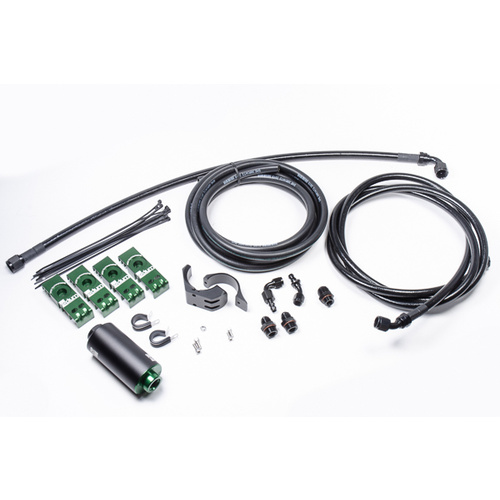

INCLUDES

• Fuel Filter (-01 Cellulose, -03 Stainless, or -05 Microglass)
• Black 10AN and 8AN Male Adapter Fittings (x2)
• Billet Aluminum 60mm Filter 2-Piece Clamp
• Aluminum MKIV Supra Billet FIlter Mount
• 10AN PTFE Fuel Feed Line
• 8AN PTFE Fuel Feed Line
• 6AN Fuel Return Hose
• Fuel Brake Line Retainers
• Stainless Steel Hardware

NOTES:

• To complete the system as designed, it is recommended to use the Radium 20-0215 Fuel Rail with a combination of Radium 20-0176 FPD-R, Radium 20-0386, and Radium 14-0332 for the center port fittings. And to connect to the rear port, a Radium 20-0223 DMR mates up perfectly with the included PTFE return hose.
