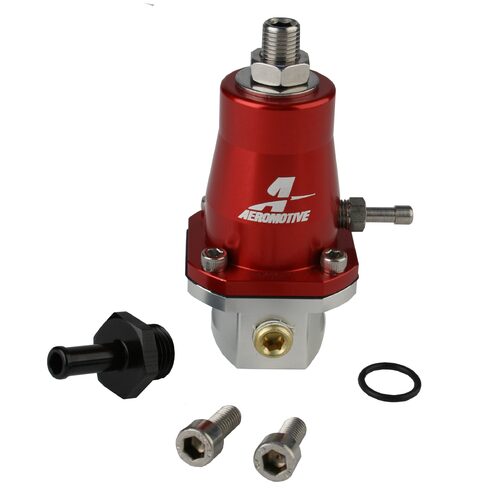

AEROMOTIVE Honda/Acura Billet Adjustable Regulator(13116)

Description

Application specific billet, adjustable fuel pressure regulator.  Specially engineered for fitment and optimum flow and pressure control on Honda and Acura engines.  Provides fully adjustable base fuel pressure, 1:1 rising rate for forced induction engines if necessary and mounts directly to a factory or aftermarket Honda or Accura fuel rail equipped with the factory style fuel pressure regulator mounting pad.

• Adjustable base pressure from 30-70 PSI.
• Fuel pressure rises on a 1:1 ratio with boost.
• Compatible with gas and ethanol based fuels.
• Connects to the stock fuel rail and return line.
• 1/8? NPT dedicated gauge/pressure test  port.
• Suitable for pumps from stock flow up to A1000.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
• The same Aeromotive flow and pressure control demanded by top racers and tuners, rolled into a Honda specific, bolt-on package.

Additional information

Mounting Configuration: External

P/N 13116: Honda Billet Rail Mount Regulator
Fits Factory Honda Fuel Rail and fuel return line

Billet adjustable regulators specifically designed for Honda and Acura engines.  Provides fully adjustable base fuel pressure and mounts directly to a factory or aftermarket fuel rail with factory mounting pad.

• Adjustable base pressure from 30-70 PSI.
• Fuel pressure rises on a 1:1 ratio with boost.
• Compatible with gas and ethanol based fuels.
• Connects to the stock fuel rail and return line.
• 1/8? NPT dedicated gauge/pressure test  port.
• Suitable for pumps from stock flow up to A1000.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
• The same Aeromotive flow and pressure control demanded by top racers and tuners, rolled into a Honda specific, bolt-on package.

P/N 13116
92-97 1.6L VTEC
86 – 89 Accord LXi/SEi
92 – 95 Civic
99 – 00 Civic Si
93 – 95 Del Sol S/Si
94 – 97 Del Sol VTEC
89 – 91 Prelude Si
94 – 01 Integra

For additional Honda / Accura Applications see:

8-01 2.3L VTEC
98 – 02 Accord 4 cyl
96 – 97 Del Sol Si
00 – 04 S2000
98 – 99 CL 2.3L
