Radium 4-Port Manifold, Universal

This aluminum CNC machined fitting allows flexibility when plumbing a coolant or fuel system using multiple pumps or fuel rails. It features two -6AN ORB (9/16-18 thread) ports and two -8AN ORB (3/4-16 thread) ports. Approximately 4.5" long. Fully anodized and resistance to all fuel types.

20-0062

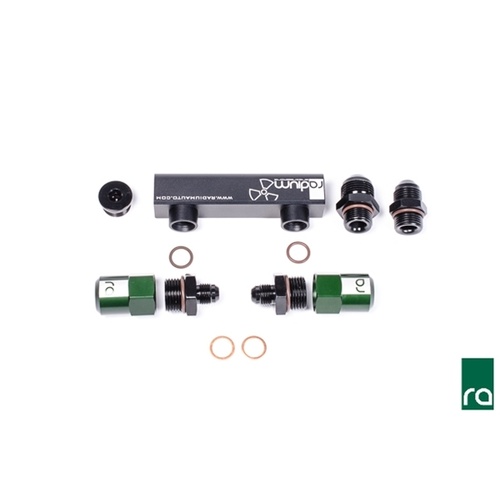

The universal kit includes the following black anodized fittings:

4-Port Manifold
8AN ORB Plug
8AN ORB to 8AN Male
8AN ORB to 10AN Male
6AN ORB to 6AN Male (x2)

20-0063
This allows flexibility when plumbing a fuel system using multiple Bosch pumps. NOTE: this kit eliminates the Bosch check valves. The pumps can NOT be staged.

4-Port Manifold
8AN ORB Plug
8AN ORB to 8AN Male
8AN ORB to 10AN Male
6AN ORB to M12x1.5 Male (x2)
M12 Crush Washer (x2)

20-0463
This allows flexibility when plumbing a fuel system using multiple Bosch pumps. NOTE: this kit permits the Bosch check valves. The pumps can be staged.

4-Port Manifold
8AN ORB Plug
8AN ORB to 8AN Male
8AN ORB to 10AN Male
10AN ORB to 6AN Male (x2)
Bosch 044 Check Valve Adapter (x2)
M12 Crush Washer (x2)
6AN ORB Viton O-ring (x2)

20-0187
This allows flexibility when plumbing a fuel system using multiple AEM pumps. The dual kit for AEM 50-1005 pumps includes the following black anodized fittings:

4-Port Manifold
8AN ORB Plug
8AN ORB to 8AN Male
8AN ORB to 10AN Male
6AN ORB to 6AN ORB (x2)


20-0188
This allows flexibility when plumbing a fuel system using multiple Deatschwerks pumps. The dual kit for DW 350iL pumps includes the following black anodized fittings:

4-Port Manifold
8AN ORB Plug
8AN ORB to 8AN Male
8AN ORB to 10AN Male
8AN ORB to 6AN ORB (x2)
