SKU: pulsar-turc-GTX3582R

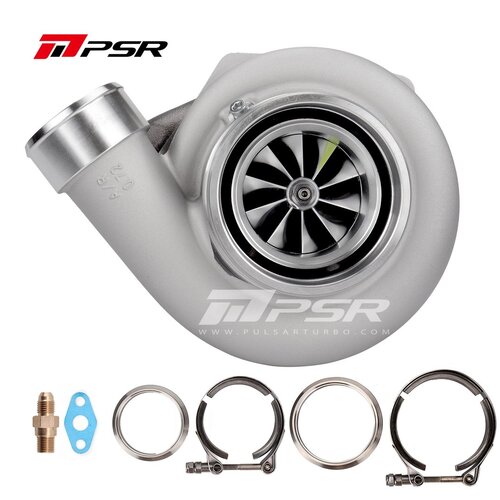

PULSAR Turbo GTX3582R GEN2 Turbocharger
PULSAR TURBO
Description
ITEM: PULSAR Turbo GTX3582R GEN2 Turbocharger
- Dual Ceramic Ball Bearing System
- 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c Gen2 9 Blade Turbine Wheel
- Gen2 Cover Integrated with the Speed Sensor Port
- 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet turbine housing In option
- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: ~85 lb/min, rated @ 880 FWHP
Description
- Compressor Wheel: 66*82mm
- Turbine Wheel: 68*62mm
- Compressor Inlet: 4.0 Hose
- Compressor Outlet: 2.5 Hose
- Turbine Inlet: T3, T4 or 2? V-Band
- Turbine Outlet: 3? V-Band
- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14*1.5
We highly recommended running water cooling for better durability.
Specifications
SKU | pulsar-turc-GTX3582R |
Brand | PULSAR TURBO |
Shipping Weight | 45.0000kg |
Shipping Width | 0.500m |
Shipping Height | 0.300m |
Shipping Length | 0.350m |
