- Compressor Wheel: 58*71mm
- Turbine Wheel: 60*55mm
- Compressor Inlet: 4? Hose
- Compressor Outlet: 2? Hose
- Turbine Inlet: T3 or T4
- Turbine Outlet: 3? V-Band
- Water Ports: 2-M14 X 1.5
- Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
- Oil Outlet: Std T3 Oil Drain Flange
SKU: pulsar-turbo-5855g

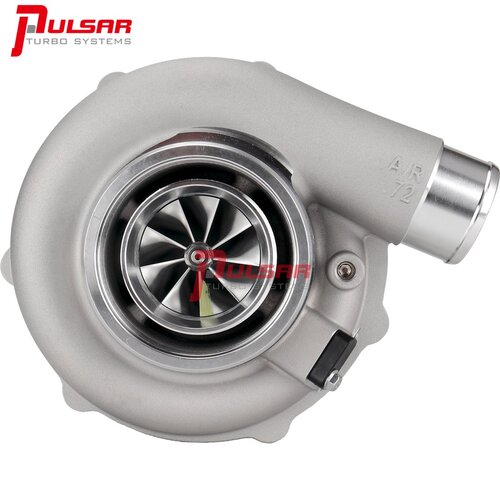

PULSAR 5855G aka G30-770 Dual Ball Bearing Turbo
PULSAR TURBO
Description
ITEM: PULSAR 5855G aka G30-770 Dual Ball Bearing Turbo
- Dual ceramic ball bearing system provides optimal turbo response &
better durability by reducing the shaft-motion - 9 Blade G-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade G-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
Description
Specifications
SKU | pulsar-turbo-5855g |
Brand | PULSAR TURBO |
Shipping Weight | 45.0000kg |
Shipping Width | 0.500m |
Shipping Height | 0.300m |
Shipping Length | 0.350m |
