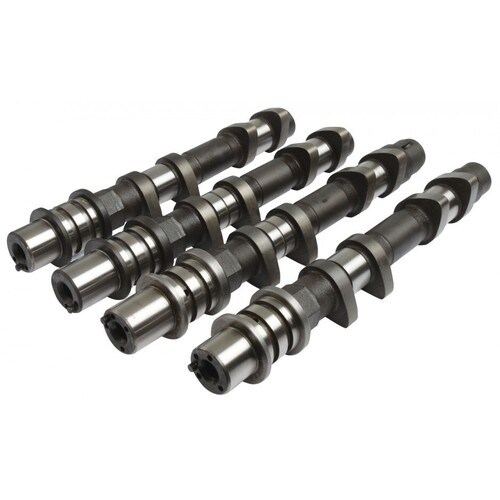

Kelford Cams R-199-E Camshaft Set for (EJ25 W/AVCS) - 292, 288/294 Deg
Kelford Cams R-199-E Camshaft Set for (EJ25 W/AVCS) - 292, 288/294 Deg
SKU: kelford-R-199-E

Kelford Cams R-199-E Camshaft Set for (EJ25 W/AVCS) - 292, 288/294 Deg

KELFORD CAMS

$1,633.50

or 4 payments of $408.38 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams R-199-E Camshaft Set for (EJ25 W/AVCS) - 292, 288/294 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 292&288/294 Degrees advertised duration. 11.00mm&11.00mm/11.00mm lift
  • 288/280 Degree split lobe cams to suit high RPM, high HP engines, especially good with E85 fuel.

Specifications

Engine Make: Engine Model: Part Number:
SUBARU 2.5 STI 2005-2006 R-199-E
Valve Clearance: Intake: 0.20mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 11.20mm Exhaust: 11.25mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 11.00mm Exhaust: 11.00mm
Advertised Duration @ 0.25mm Intake: 292 Exhaust: 294
Duration @ 1.00mm VALVE LIFT Intake: 250 Exhaust: 252
Timing @ 1.00mm VALVE LIFT IVO: 13 BTDC EVO: 64 BBDC
    IVC: 57 ABDC EVC: 8 ATDC
Suggested Centre Lines:   Intake: 112 Exhaust: 118
VALVE Lift @ TDC Intake: 2.42mm Exhaust: 1.85



compatibility

  • 2004-On Subaru STi

SKU kelford-R-199-E
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
