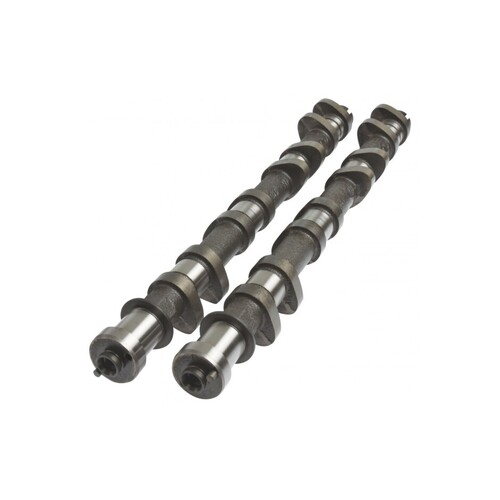

Kelford Cams 3-195-TA Camshaft Set for (3S-GTE Gen 3) - 262/262 Deg
Kelford Cams 3-195-TA Camshaft Set for (3S-GTE Gen 3) - 262/262 Deg
SKU: kelford-3-195-TA

Kelford Cams 3-195-TA Camshaft Set for (3S-GTE Gen 3) - 262/262 Deg

KELFORD CAMS

$1,056.43

or 4 payments of $264.11 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 3-195-TA Camshaft Set for (3S-GTE Gen 3) - 262/262 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 262/262 Degrees advertised duration. 10.50mm/10.00mm lift
  • 3S-GTE Turbo cams for all out drag racing, high RPM, 700HP+ turbo

Specifications

Engine Make: Engine Model: Part Number:
TOYOTA 3S-GE (Gen 3) 3-195-TA
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 10.75mm Exhaust: 10.30mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.50mm Exhaust: 10.00mm
Advertised Duration @ 0.30mm Intake: 262 Exhaust: 262
Duration @ 1.00mm VALVE LIFT Intake: 224 Exhaust: 224
Timing @ 1.00mm VALVE LIFT IVO: 2 BTDC EVO: 46 BBDC
    IVC: 42 ABDC EVC: 2 BTDC
Suggested Centre Lines:   Intake: 110 Exhaust: 114
VALVE Lift @ TDC Intake: 1.22mm Exhaust: 0.78



compatibility

  • 1994-1999 Toyota Celica ST205
  • 1994-1999 Toyota MR2 Turbo (1993+ Japan Turbo)

SKU kelford-3-195-TA
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
