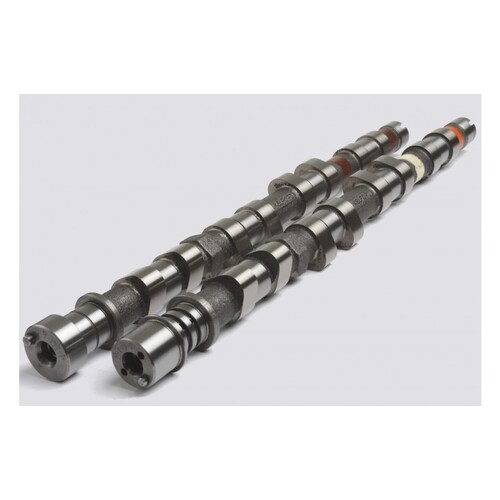

Kelford Cams 9-TX288 Camshaft Set for (Evo 9) - 288/280 Deg
Kelford Cams 9-TX288 Camshaft Set for (Evo 9) - 288/280 Deg
SKU: kelford-9-TX288

Kelford Cams 9-TX288 Camshaft Set for (Evo 9) - 288/280 Deg

KELFORD CAMS

$1,000.77

or 4 payments of $250.19 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 9-TX288 Camshaft Set for (Evo 9) - 288/280 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 288/280 Degree advertised duration, 12.00/11.50mm lift
  • Drag racing camshafts. These camshafts suit high HP, professionally built drag racing engines up to 50lb boost and 9500 RPM with our recommended valve springs.

Specifications

Engine Make: Engine Model: Part Number:
MITSUBISHI 4G63 EVO 9 MIVEC 9-TX288
Valve Clearance: Intake: Set at the
  Exhaust: Set at the

Cam Lift:   Intake: 6.94mm Exhaust: 6.65mm
Rocker Ratio:   Intake: 1.73 Exhaust: 1.73
Nett Valve Lift:   Intake: 12.00mm Exhaust: 11.50mm
Advertised Duration @ 0.10mm Intake: 288 Exhaust: 280
Duration @ 1.00mm VALVE LIFT Intake: 242 Exhaust: 238
Timing @ 1.00mm VALVE LIFT IVO: 9 ATDC EVO: 56 BBDC
    IVC: 71 ABDC EVC: 2 ATDC
Suggested Centre Lines:   Intake: 130 Exhaust: 117
VALVE Lift @ TDC Intake: 0.48mm Exhaust: 1.32



compatibility

  • 2005-2007 Mitsubishi Evo 9 4G63 MIVEC

SKU kelford-9-TX288
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
