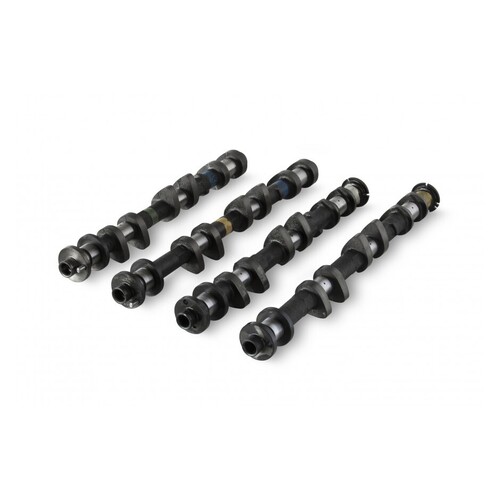

Kelford Cams T2-189-B Camshaft Set for (350Z Rev Up Turbo) - 272/272 Deg
Kelford Cams T2-189-B Camshaft Set for (350Z Rev Up Turbo) - 272/272 Deg
SKU: kelford-T2-189-B

Kelford Cams T2-189-B Camshaft Set for (350Z Rev Up Turbo) - 272/272 Deg

KELFORD CAMS

$1,923.61

or 4 payments of $480.90 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams T2-189-B Camshaft Set for (350Z Rev Up Turbo) - 272/272 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 272/272 Degrees advertised duration. 11.00mm/11.00mm lift
  • Stage 2 cam to suit turbocharged engine builds for super lap or wild street performance.

Specifications

Engine Make: Engine Model: Part Number:
NISSAN VQ35 REV UP (350Z) T2-189-B
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 11.25mm Exhaust: 11.30mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 11.00mm Exhaust: 11.00mm
Advertised Duration @ 0.30mm Intake: 272 Exhaust: 272
Duration @ 1.00mm VALVE LIFT Intake: 232 Exhaust: 232
Timing @ 1.00mm VALVE LIFT IVO: 9 ATDC EVO: 61 BBDC
    IVC: 61 ABDC EVC: 9 BTDC
Suggested Centre Lines:   Intake: 125 Exhaust: 125
VALVE Lift @ TDC Intake: 0.35mm Exhaust: 0.32mm



compatibility

  • 2007-2009 Nissan 350Z VQ35 Rev Up

SKU kelford-T2-189-B
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
