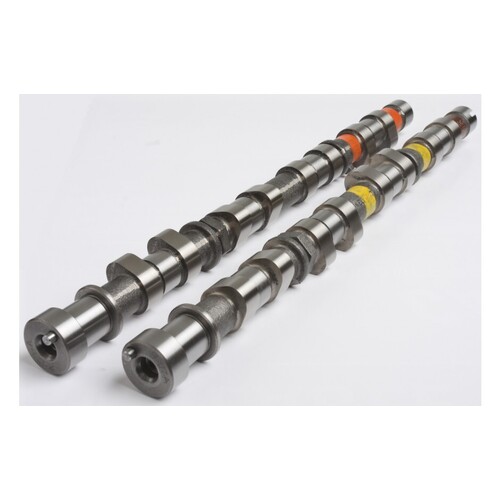

Kelford Cams 4-TX264 Camshaft Set for (Evo 4-7) - 264/260 Deg
Kelford Cams 4-TX264 Camshaft Set for (Evo 4-7) - 264/260 Deg
SKU: kelford-4-TX264

Kelford Cams 4-TX264 Camshaft Set for (Evo 4-7) - 264/260 Deg

KELFORD CAMS

$922.85

or 4 payments of $230.71 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 4-TX264 Camshaft Set for (Evo 4-7) - 264/260 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 264/260 Degree advertised duration, 11.00/10.35mm lift
  • The ultimate cam for street, strip and track engines from 300-500hp. These camshafts are stable to 35lb boost and 8000 RPM with our recommended valve springs.

Specifications

Engine Make: Engine Model: Part Number:
MITSUBISHI 4G63-EVO 4-7 4-TX264
Valve Clearance: Intake: Set at the
  Exhaust: Set at the

Cam Lift:   Intake: 6.36mm Exhaust: 5.98mm
Rocker Ratio:   Intake: 1.73 Exhaust: 1.73
Nett Valve Lift:   Intake: 11.00mm Exhaust: 10.35mm
Advertised Duration @ 0.10mm Intake: 264 Exhaust: 260
Duration @ 1.00mm VALVE LIFT Intake: 216 Exhaust: 216
Timing @ 1.00mm VALVE LIFT IVO: 1 BTDC EVO: 41 BBDC
    IVC: 35 ABDC EVC: 5 BTDC
Suggested Centre Lines:   Intake: 107 Exhaust: 113
VALVE Lift @ TDC Intake: 1.10mm Exhaust: 0.70



compatibility

  • 1996-2002 Mitsubishi Evo 4-7 4G63

SKU kelford-4-TX264
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
