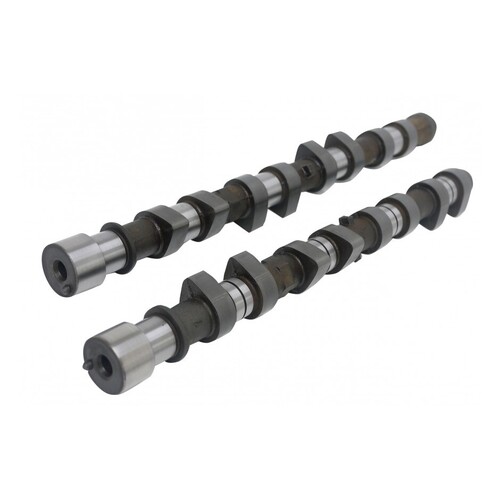

Kelford Cams T203-C Camshaft Set for (323 B6 Turbo) - 272/272 Deg
Kelford Cams T203-C Camshaft Set for (323 B6 Turbo) - 272/272 Deg
SKU: kelford-T203-C

Kelford Cams T203-C Camshaft Set for (323 B6 Turbo) - 272/272 Deg

KELFORD CAMS

$974.05

or 4 payments of $243.51 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams T203-C Camshaft Set for (323 B6 Turbo) - 272/272 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 272/272 Degrees advertised duration, 10.00mm/9.00mm lift
  • Top end performance cam to suit professionally built L series racing engines (not suitable for road cars).

Specifications

Engine Make: Engine Model: Part Number:
MAZDA Miata 323 B6 Turbo T203-C
Valve Clearance: Intake: Set at the
  Exhaust: Set at the

Cam Lift:   Intake: 10.00mm Exhaust: 9.00mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.00mm Exhaust: 9.00mm
Advertised Duration @ 0.10mm Intake: 272 Exhaust: 272
Duration @ 1.00mm VALVE LIFT Intake: 230 Exhaust: 230
Timing @ 1.00mm VALVE LIFT IVO: 7 BTDC EVO: 49 BBDC
    IVC: 43 ABDC EVC: 1 ATDC
Suggested Centre Lines:   Intake: 108 Exhaust: 114
VALVE Lift @ TDC Intake: 1.84mm Exhaust: 1.10



compatibility

  • 1987-1994 Mazda Familia

SKU kelford-T203-C
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
