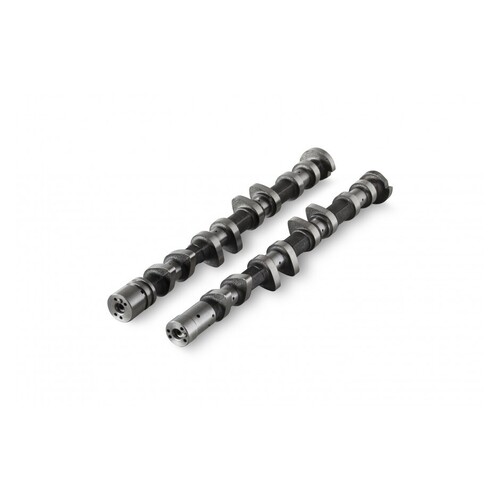

Kelford Cams 214-C Camshaft Set for (Evo X) - 278/272 Deg
Kelford Cams 214-C Camshaft Set for (Evo X) - 278/272 Deg
SKU: kelford-214-C

Kelford Cams 214-C Camshaft Set for (Evo X) - 278/272 Deg

KELFORD CAMS

$1,087.79

or 4 payments of $271.95 with Info



In Stock


Calculate Shipping


Australia wide rate - $45.00


item: Kelford Cams 214-C Camshaft Set for (Evo X) - 278/272 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 278/272 Degrees advertised duration, 11.50mm/11.00mm lift
  • Stage 3 camshafts to suit highly modified naturally aspirated stroker engines with high compression, ported heads and improved intake manifold etc. Primary lobe specification is / Degrees advertised duration, lift.

Specifications

Engine Make: Engine Model: Part Number:
MITSUBISHI EVO X 214-C
Valve Clearance: Intake: 0.30mm Set COLD at the CAM
  Exhaust: 0.35mm Set COLD at the CAM

Cam Lift:   Intake: 11.80mm Exhaust: 11.35mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 11.50mm Exhaust: 11.00mm
Advertised Duration @ 0.10mm Intake: 278 Exhaust: 272
Duration @ 1.00mm VALVE LIFT Intake: 236 Exhaust: 230
Timing @ 1.00mm VALVE LIFT IVO: EVO:
    IVC: EVC:
Suggested Centre Lines:   Intake: VARI Exhaust: VARI
Lift @ TDC Intake: Exhaust:



compatibility

  • 2007-2016 Mitsubishi Evo X

SKU kelford-214-C
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
