SKU: kelford-184-C

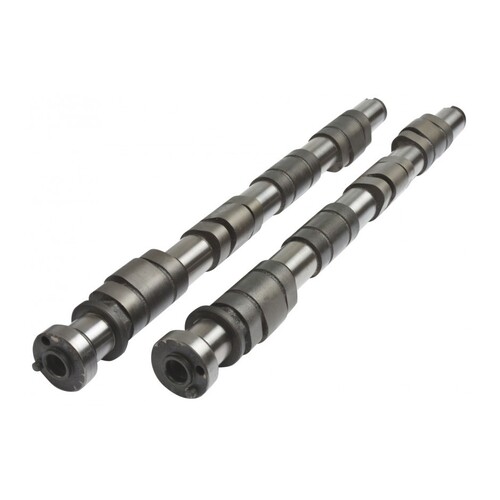

Kelford Cams 184-C Camshaft Set - High Compression for (SR16/20VE) - 314/312 Deg

KELFORD CAMS

$1,482.25

or 4 payments of $370.56 with Info



In Stock


Calculate Shipping



Australia wide rate - $45.00

Description

item: Kelford Cams 184-C Camshaft Set - High Compression for (SR16/20VE) - 314/312 Deg

Description

The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.

  • 314/312 Degrees advertised duration, 12.50mm/11.80mm lift
  • SR20VE cams to suit track and drag racing cars. Large duration low lobes to enhance midrange transition onto the high lobes. Primary lobe specification is 260/252 Degrees advertised duration, 10.20mm/10.20mm lift.

Specifications

Engine Make: Engine Model: Part Number:
NISSAN SR16/20VE 184-C
Valve Clearance: Intake: 0.20mm Set COLD at the CAM
  Exhaust: 0.40mm Set COLD at the CAM

Cam Lift:   Intake: 8.01mm Exhaust: 7.78mm
Rocker Ratio:   Intake: 1.6 Exhaust: 1.6
Nett Valve Lift:   Intake: 12.50mm Exhaust: 11.80mm
Advertised Duration @ 0.10mm Intake: 314 Exhaust: 312
Duration @ 1.00mm VALVE LIFT Intake: 266 Exhaust: 258
Timing @ 1.00mm VALVE LIFT IVO: 29 BTDC EVO: 49 BBDC
    IVC: 57 ABDC EVC: 29 ATDC
Suggested Centre Lines:   Intake: 104 Exhaust: 100
VALVE Lift @ TDC Intake: 4.24mm Exhaust: 3.70



compatibility

  • 1998-2000 Nissan Pulsar VZ-R N15
  • 1997-2000 Nissan Primera Te-V sedan or G-V wagon P11 JDM, 190 PS (187 hp; 140 kW)
  • 2001-2003 Nissan Primera, 20V sedan or W20V Wagon P12 JDM, 204 PS (201 hp; 150 kW)
  • 1997-2000 Nissan Bluebird SSS-Z sedan U14 JDM, 190 PS (187 hp; 140 kW)
  • 1997-2000 Nissan Wingroad ZV-S wagon Y11 JDM, 190 PS (187 hp; 140 kW)

Specifications

SKU kelford-184-C
Brand KELFORD CAMS
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.250m
