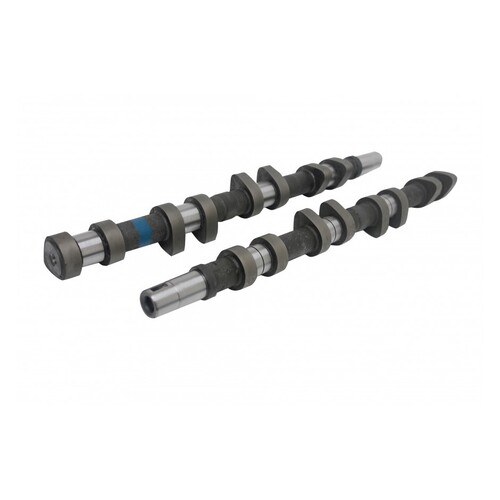

Kelford Cams 146-E Camshaft Set for (Cosworth YB) - 270/270 Deg
KELFORD CAMS
Description
item: Kelford Cams 146-E Camshaft Set for (Cosworth YB) - 270/270 Deg
Description
The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.
- 270/270 Degrees advertised duration, 10.90mm/10.90mm lift
- Solid lifter cam to suit various high RPM racing applications. Suits well built competition engines with large turbo. Primary lobe specification is / Degrees advertised duration, lift.
Specifications
Engine Make: | Engine Model: | Part Number: | |||||
FORD | COSWORTH YB | 146-E | |||||
Valve Clearance: | Intake: | 0.30mm | Set | COLD | at the | CAM | |
Exhaust: | 0.30mm | Set | COLD | at the | CAM | ||
Cam Lift: | Intake: | 11.20mm | Exhaust: | 11.20mm | |||
Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
Nett Valve Lift: | Intake: | 10.90mm | Exhaust: | 10.90mm | |||
Advertised Duration @ | 0.10mm | Intake: | 270 | Exhaust: | 270 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 228 | Exhaust: | 228 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | 6 BTDC | EVO: | 49 BBDC | ||
IVC: | 42 ABDC | EVC: | 1 BTDC | ||||
Suggested Centre Lines: | Intake: | 108 | Exhaust: | 115 | |||
VALVE | Lift @ TDC | Intake: | 1.85mm | Exhaust: | 1.30 |
compatibility
- Ford Cosworth YB
Specifications
SKU | kelford-146-E |
Brand | KELFORD CAMS |
Shipping Weight | 25.0000kg |
Shipping Width | 0.600m |
Shipping Height | 0.200m |
Shipping Length | 0.250m |
