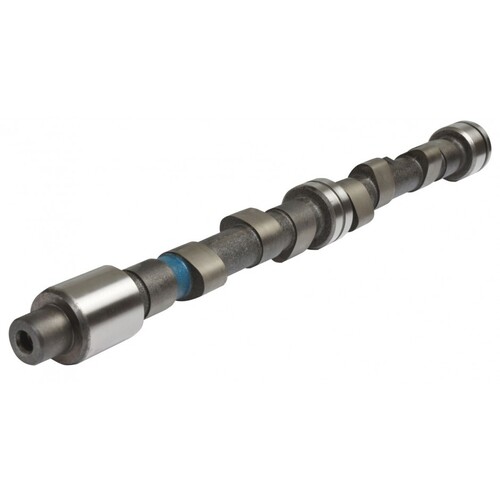

Kelford Cams 145-B2 Camshaft for (Ford 2.0L SOHC) - 234/242 Deg
KELFORD CAMS
Description
item: Kelford Cams 145-B2 Camshaft for (Ford 2.0L SOHC) - 234/242 Deg
Description
The vision is for Kelford Cams to be known as one of the best in the camshaft industry, to be recognised worldwide for manufacturing high quality, high performance camshafts for the motorsport industry. We are a small company that, since 1968 has specialised in custom camshafts to suit the individual requirements of each racer. We have a vast knowledge of engine combinations for all types of motor sport and we know how to match camshafts to engine and vehicle requirements. All of our cams are manufactured in-house using ultra-modern design systems and ground using masterless CNC grinders with CBN cutting wheel technology for superior quality and consistency.
- 234/242 Degrees duration @ 0.050" valve lift, .440"/.440" lift
- Camshafts specifically designed to suit high HP turbocharged TB48 competition engines.
Specifications
| Engine Make: | Engine Model: | Part Number: | |||||
| FORD | 2.0L SOHC | 145-B2 | |||||
| Valve Clearance: | Intake: | 0.010" | Set | HOT | at the | CAM | |
| Exhaust: | 0.010" | Set | HOT | at the | CAM | ||
| Cam Lift: | Intake: | 0.285" | Exhaust: | 0.285" | |||
| Rocker Ratio: | Intake: | 1.6 | Exhaust: | 1.6 | |||
| Nett Valve Lift: | Intake: | 0.440" | Exhaust: | 0.440" | |||
| Advertised Duration @ | 0.006" | Intake: | 264 | Exhaust: | 272 | ||
| Duration @ | 0.05" VALVE LIFT | Intake: | 234 | Exhaust: | 242 | ||
| Timing @ | 0.05" VALVE LIFT | IVO: | 12 BTDC | EVO: | 50 BBDC | ||
| IVC: | 42 ABDC | EVC: | 12 ATDC | ||||
| Suggested Centre Lines: | Intake: | 105 | Exhaust: | 109 | |||
| VALVE | Lift @ TDC | Intake: | 0.081" | Exhaust: | 0.085" | ||
compatibility
- 2007-2010 Ford C-Max (Five-speed manual / Four-speed automatic / Continuously variable automatic (CVT) FWD 145 @ 6,000 136 @ 4,500)
- 2004-2018 Ford EcoSport (Six-speed manual / Four-speed automatic / Six-speed automatic AWD 140 @ 6,000 136 @ 4,500)
- 2018-On Ford EcoSport (Six-speed automatic AWD 166 @ 6,500 149 @ 4,500)
- 2004-2008 Ford Fiesta ST (Five-speed manual FWD 150 @ 6,000 140 @ 4,500)
- 2004 -2011 / Europe only Ford Focus (Five-speed manual / Four-speed automatic / Six-speed dual-clutch automatic FWD 143 @ 6,000 136 @ 4,500)
- 2011-2018 Ford Focus (Six-speed manual / Six-speed dual-clutch automatic FWD 160 @ 6,500 146 @ 4,450)
- 2008-2011 / US only Ford Focus (Five-speed manual / Five-speed automatic FWD 140 @ 6,000 136 @ 4,500)
- 2000-2007 Ford Mondeo (Five-speed manual / Six-speed automatic FWD 145 @ 6,000 136 @ 4,500)
- 2010-2012 / US only Ford Transit Connect (Four-speed automatic FWD 136 @ 6,300 128 @ 4,750)
Specifications
| SKU | kelford-145-B2 |
| Brand | KELFORD CAMS |
| Shipping Weight | 25.0000kg |
| Shipping Width | 0.600m |
| Shipping Height | 0.200m |
| Shipping Length | 0.250m |
