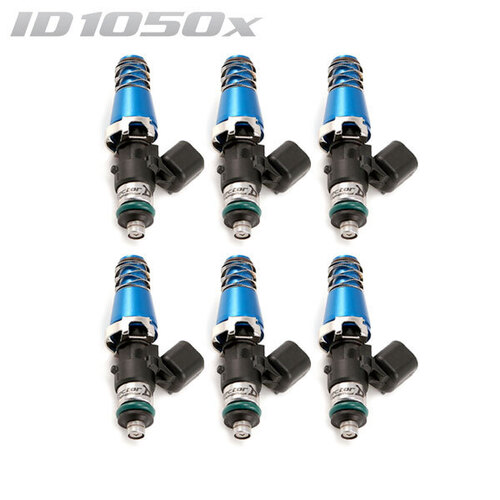

ID1050-XDS Injectors Set of 6, 60mm Length, 11mm Blue Adaptor Top, 14mm Lower O-Ring - Toyota Supra 2JZ-GTE/Nissan 300ZX Z32
ID1050-XDS
Description
Item: ID1050-XDS Injectors Set of 6, 60mm Length, 11mm Blue Adaptor Top, 14mm Lower O-Ring - Toyota Supra 2JZ-GTE/Nissan 300ZX Z32
The ID1050x is the evolution of the ID1000, and the latest addition to the X-Series. It is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport, and is the result of lessons learned during development of the ID1300x, and ID1700x. Like the ID1300x and ID1700x, the ID1050x is not a modified production component. It is a built to spec motorsport injector, offering optimization of critical operating parameters important to you, the motorsport tuner. Compared to the original ID1000, the ID1050x offers numerous improvements, and is sure to become the new reference.
Features:
- Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels.
- Compact body allows fitment in 200+ applications, including current and future engines utilizing short body injectors.
- Improved internal flow path increases output by 5% without sacrificing low flow performance.
- Stronger magnetic circuit offers stable operation up to 10 bar.
- Replaceable inlet filter extends service life.
Note: Some vehicles may have multiple possible injector sizes available. Always compare sizing provided in the listing (length and O-Ring size) against injectors currently fitted to vehicle.
Specifications
- Nominal Flow Rate: 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
- Maximum Differential Fuel Pressure: 10.0 Bar (145.0 psi)
- Fuel Compatibility: Compatible With All Known Fuels
- Electrical Connector: USCAR
Vehicle Fitment
1989 Nissan 300ZX Z32 |
1990 Nissan 300ZX Z32 |
1991 Nissan 300ZX Z32 |
1992 Nissan 300ZX Z32 |
1993 Nissan 300ZX Z32 |
1993 Toyota Supra JZA80 |
1994 Nissan 300ZX Z32 |
1994 Toyota Supra JZA80 |
1995 Nissan 300ZX Z32 |
1995 Toyota Supra JZA80 |
1996 Nissan 300ZX Z32 |
1996 Toyota Supra JZA80 |
1997 Toyota Supra JZA80 |
1998 Toyota Supra JZA80 |
1999 Toyota Supra JZA80 |
2000 Toyota Supra JZA80 |
2001 Toyota Supra JZA80 |
2002 Toyota Supra JZA80 |
Specifications
SKU | id-1050.60.11.14.6 |
Brand | INJECTOR DYNAMICS |
Shipping Weight | 3.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.150m |
Shipping Length | 0.200m |
