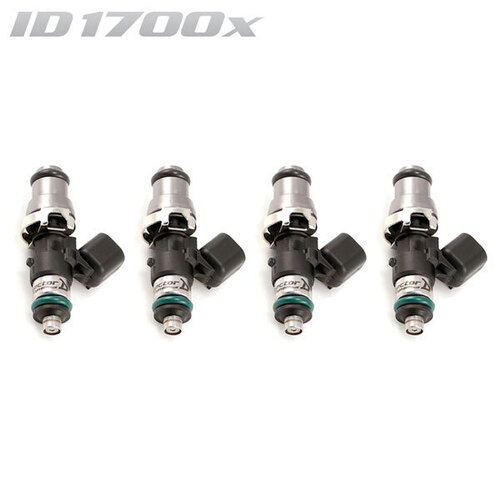

ID1700-XDS Injectors Set of 4, 48mm Length, 14mm Grey Adaptor Top, 14mm Lower O-ring - Honda S2000 AP2/Civic/Integra/Accord (K20/K24)
ID1700-XDS
Description
Item: ID1700-XDS Injectors Set of 4, 48mm Length, 14mm Grey Adaptor Top, 14mm Lower O-ring - Honda S2000 AP2/Civic/Integra/Accord (K20/K24)
The ID1700x is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. The ID1700x was designed to fill the gap between the ID1300x and the ID2000, and like the ID1300x, it features corrosion resistant internals making it compatible with all known automotive fuels.
A unique magnetic circuit, resulting from a lengthy development program, makes the ID1700x immune to voltage and pressure sensitivity problems that plague other high impedance high flow injectors. The ID1700x excels at high pressures typical of current automotive systems, and will perform flawlessly in these applications.
The ID1700x was designed to be an all fuel compatible injector, capable of very high flow rates. As such, it will most often be used to deliver E85 to boosted engines, or occasionally, gasoline in extreme high horsepower applications. Neither of these applications requires extended linearity at low flow rates, and so this was given a proportionately lower priority during the design process.
The ID1700x will deliver flawless stoichiometric idle and cruise mixtures on E85, but like the ID2000, should not be expected to do so on gasoline.
If you need flawless drivability on gasoline, the ID1300x will provide this, and is capable of approximately 150hp per injector on E85.
Note: Some vehicles may have multiple possible injector sizes available. Always compare sizing provided in the listing (length and O-Ring size) against injectors currently fitted to vehicle.
Specifications
- Nominal Flow Rate: 1725cc/min @ 3.0 Bar (43.5 psi) Using Iso-Octane at 52 Degrees C (125 Degrees F)
- Maximum Differential Fuel Pressure: 7.0 Bar (101.5 psi)
- Fuel Compatibility: Compatible with Methanol/Ethanol/All Known Hydrocarbon Fuels.
- Electrical Connector: USCAR
Vehicle Fitment
2001 Honda Civic EP3 Type-R |
2001 Honda Integra DC5 |
2002 Honda Accord CL Euro |
2002 Honda Civic EP3 Type-R |
2002 Honda Integra DC5 |
2003 Honda Accord CL Euro |
2003 Honda Accord CM |
2003 Honda Civic EP3 Type-R |
2003 Honda Integra DC5 |
2004 Honda Accord CL Euro |
2004 Honda Accord CM |
2004 Honda Civic EP3 Type-R |
2004 Honda Integra DC5 |
2004 Honda S2000 AP2 |
2005 Honda Accord CL Euro |
2005 Honda Accord CM |
2005 Honda Civic EP3 Type-R |
2005 Honda Integra DC5 |
2005 Honda S2000 AP2 |
2006 Honda Accord CL Euro |
2006 Honda Accord CM |
2006 Honda Civic FN2 Type-R |
2006 Honda Integra DC5 |
2006 Honda S2000 AP2 |
2007 Honda Accord CL Euro |
2007 Honda Accord CM |
2007 Honda Civic FN2 Type-R |
2007 Honda Integra DC5 |
2007 Honda S2000 AP2 |
2008 Honda Accord CL Euro |
2008 Honda Civic FN2 Type-R |
2008 Honda S2000 AP2 |
2009 Honda Civic FN2 Type-R |
2009 Honda S2000 AP2 |
2010 Honda Civic FN2 Type-R |
2011 Honda Civic FN2 Type-R |
Specifications
SKU | id-1700.48.14.14.4 |
Brand | INJECTOR DYNAMICS |
Shipping Weight | 3.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.150m |
Shipping Length | 0.200m |
