IAG Performance Performance Chromoly Transfer Gears For 1:1 Transmission for (STi 6-Speed 02-05)
IAG
In Stock
Description
item: IAG Performance Performance Chromoly Transfer Gears For 1:1 Transmission (STi 6-Speed 02-05)
Description
The IAG Chromoly Transfer Gear Set is specifically engineered to strengthen the weak points in the STI 6 speed transmission. When a powerful STI launches aggressively at the track the output shaft progressively twists and weakens. After multiple launches, the output shaft breaks where the driveshaft yoke connects.
IAG’s upgraded transfer gear set is capable of handling these immense loads by improving the gear material and redesigning the parts at the weakest points. The gears are manufactured from chromoly which is known for its improved hardness and strength. The output shaft diameter was increased and the splines were enlarged and lengthened then matched to an upgraded Spicer yoke designed to mate to an aftermarket performance driveshaft.
This transfer gear set is 1:1 for the (2002-05 STI). The IAG transfer gears were tested on Subaru drag vehicles producing 1200 WHP/800 WTQ at 3000+ LBS (in the USA).
Requirements:
- Driveshaft Shop Driveshaft or ACPT Driveshaft
Note: Gear Sets are specific to transmission applications please choose accordingly.

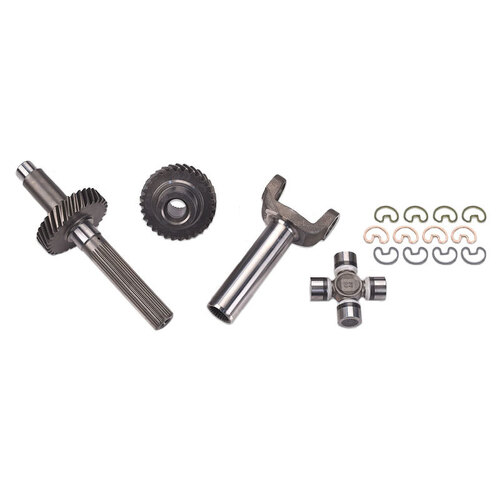

What's Included
- Chromoly Driven Gear
- Chromoly Output Shaft
- Upgraded Spicer Yoke
- Heavy Duty U-Joint
- U-Joint Outside Snap Rings
compatibility
Note: Requires Driveshaft Shop Driveshaft or ACPT Driveshaft
- 2002-2005 Subaru STI (With 1:1 Transmission)
Specifications
SKU | IAG-DRV-1000 |
Brand | IAG |
Shipping Weight | 40.0000kg |
Shipping Width | 0.800m |
Shipping Height | 0.200m |
Shipping Length | 0.800m |
