SKU: GSC-5043

GSC Power Division 5043 Beehive Spring/Titanium Retainer Set FOR Subaru

5043

$759.45

or 4 payments of $189.86 with Info



In Stock


Calculate Shipping



Australia wide rate - $25.00 (ETA: 3 days)

Description

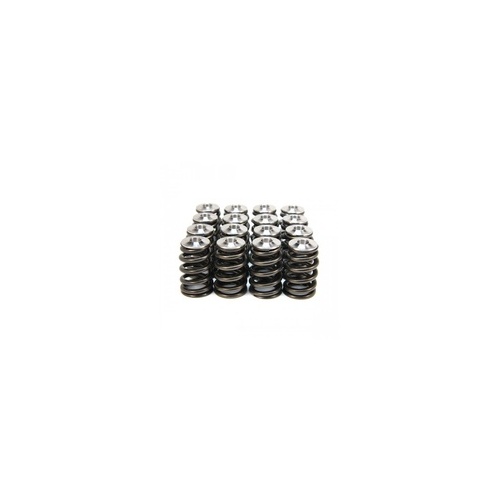

GSC Power Division 5043 Beehive Spring/Titanium Retainer Set (Subaru)

GSC Power Division has been in operation since 2004, and it specializes in the design and manufacture of high performance camshafts and valve train components.

Description

GSC Power-Division Beehive springs feature some of the most impressive manufacturing techniques in the industry. Our beehive spring uses an ovate wire which utilizes advanced material heat treatment methods for superior load loss capabilities. What this means to you is our spring has the highest level of spring load retention while still maintaining good fatigue threw out the life of the spring. Only the best materials go into the GSC Power-Division Beehive valve spring. Each batch is scrutinized for tensile strength properties, ductility, inclusion content, and fatigue toughness.

The beehive valve spring shape has become the buzz lately. Some have inquired as to the benefits of a beehive spring vs the dual springs that are sold by others. While some might find that the beehive spring design is new it has been used commonly in many OE engines as well as in all of the NASCAR and F1 engines of today. Why? The beehive shape is more stable than standard single or dual cylindrical springs. The beehive design which incorporates an ovate wire is more than capable of the performance demands that were previously only matched by a Dual Springs. With the smaller and lighter retainer used on the beehive valve spring allow for higher RPM and more valve control. So beehive valve springs, with there lighter weight retainers allow for engine's to rev quicker and maintain a more stable valve motion than the traditional cylindrical springs of yesteryear.

Beehive Spring Benefits:

  • Rev faster
  • Lighter components
  • More durable design
  • Less stress on valvetrain components
  • Lower spring frequency for more precise valve control.
  • More valve control equals more aggressive cam profiles
  • Nano peened for faster break in and less stressed springs
  • All of these items help to return more power for you to enjoy!
The GSC 5043 Beehive valve spring set comes with Grade 5 Titanium retainers. This kit is capable of 9500+ RPMS, with as much as 11.5mm lift cams.

Specifications

5043 Beehive spring pressure:
  • Seat: 85 lbs @ 1.369" (34.8mm)
  • 225lbs @.433" (11mm)
  • Coil bind @ .550" (14mm)


5043 Beehive Rev and Boost range (using an S3 profile camshaft set)

  • Max RPM: 9,500
  • Max boost: 35psi+

What's Included

  • (16) Beehive Valve Springs
  • (16) Titanium Retainers

compatibility

  • 1999-2014 WRX/STI

Specifications

SKU GSC-5043
Brand GSC POWER DIVISION
Shipping Weight 5.0000kg
Shipping Width 0.300m
Shipping Height 0.200m
Shipping Length 0.250m
