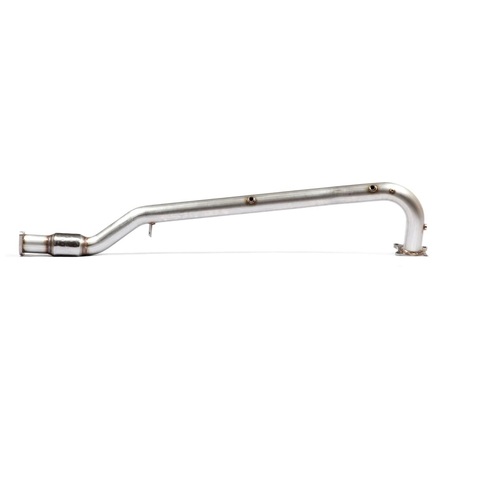

GrimmSpeed 007103 Catted Down-Pipe for WRX 2015+ 6MT Stainless Steel

Design
Our engineers began by 3D scanning the OEM J-Pipe and vehicle underbody using our in-house FARO Arm. That data was used in CAD to design a pipe that fits perfectly within the tight underbody packaging on a 2015 WRX without sacrificing ground clearance. The 2015 WRX uses a series of OEM brackets to support the weight of the turbo and J-pipe, the most important of which bolts to the turbine outlet flange. Our engineers insisted on using thick 1/2" stainless steel flanges, but also knew that without a clever design, the very important OEM brackets would no longer line up. The GrimmSpeed flange design uses a CNC machined pocket that the OEM bracket sits in during installation, allowing the use of 1/2" thick flanges as well as the factory turbo support bracket!

Finally, they worked tirelessly to design and manufacture a J-Pipe that could be bent from a single piece of tubing. This allows for more efficient manufacturing, less potential failure points and a product that fits perfectly each and every time.

Materials
In true GrimmSpeed fashion, no corners were cut in the fabrication of each and every one of these J-Pipes. A proper design is no good without proper material selection. In this case, 304 series stainless steel is the best choice for durability, corrosion resistance and cost efficiency. Flanges are machined from 1/2" thick plate and the primary tube is CNC bent, laser cut and expanded from 3" tubing. O2 bungs (three of them) and our custom turbo studs (included) are both machined on a CNC lathe from 304 rod. Finally, finished assemblies are TIG welded using 308L filler rod.

Construction
Last, but certainly not least, is construction. A solid design and robust materials are nothing without use of the correct manufacturing methods and welding processes. Each GrimmSpeed J-Pipe is welded in the same master weld fixture. When not in use, a 'master pipe' lives in that fixture, allowing for a quick check, before each production run, that the fixture is still accurate. Even that isn't good enough for our engineers, so they 3D scan the fixture and master periodically, to ensure accuracy.
