SKU: IE-IEEXCI3

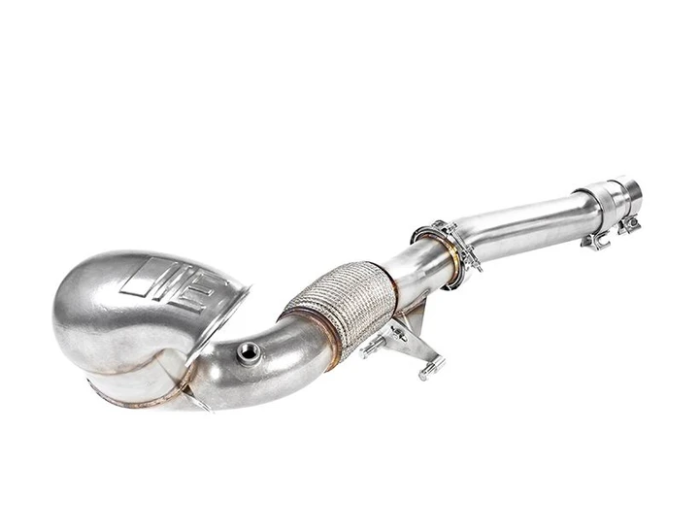

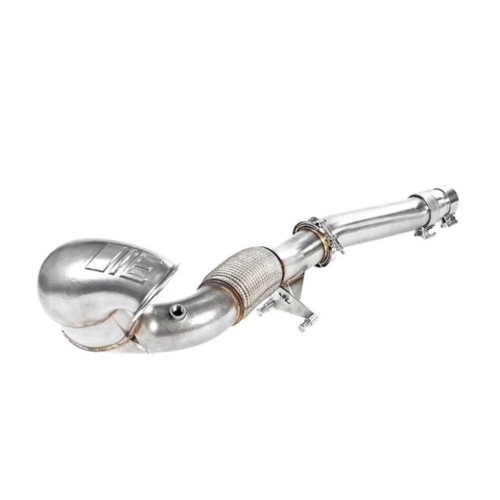

Integrated Engineering Cast Catted Down Pipe - Audi A3 8V/VW Golf Inc GTI Mk7, Mk7.5 (2.0 TSI FWD)

IEEXCI3

$1,699.00

or 4 payments of $424.75 with Info



In Stock


Calculate Shipping



Australia wide rate - $30.00 (ETA: 3 days)

Description

ITEM: Integrated Engineering Cast Catted Down Pipe - Audi A3 8V/VW Golf Inc GTI Mk7, Mk7.5 (2.0 TSI FWD)

UNLOCK STAGE 2 POWER:

When upgrading your VW MK7 or Audi 8V A3 to stage 2 software you will also need to reduce the back pressure caused by the small diameter stock pipe. With the exhaust system flowing better performance gains are achieved, sound is increased, and turbo lag is reduced. IE engineers guarantee a perfect fit by designing all IE downpipes in-house using the latest technology. Digital scanning is using to scan the entire environment which ensures that there is proper clearance and that all mounting points are in the correct location. Manufactured from 304 stainless steel offers a life-long product that brings performance and fun to the table for years to come.

Stage 2 ECU tuning is required, for the most power gains possible we also highly recommend an IE air intake and IE FDS intercooler.



SOUND TUNING:

An aggressive and drone-free sound will be emitted from the IE Cast Downpipe giving your car a true motorsport feel. Thick wall tubing and cast sections remove much of “tinny†sound and annoying exhaust drone emitted by cheaper, thin wall, downpipes. With downpipes, you get what you pay for in terms of sounds and overall manufacturing quality.



HIGH-FLOW CATALYTIC CONVERTER (CAT):

IE’s MQB performance downpipe includes a high-flow 200 cell per inch metal matrix catalyst located as close to the turbo as possible. Metal matrix catalysts are higher performance because the matrix web is thinner, allowing higher flow in the same size. Our catalyst is also a very large diameter, allowing a large flow area and maximum power. By being placed close to the turbo, emissions and unwanted unpleasant smells are greatly reduced.



HIGH-FLOW CAST SECTIONS:

Typical aftermarket downpipes use bends or cuts to form the shape of the downpipe; this allows the use of larger piping, but sacrifices flow and often times fitment. Using specialized 3D scanners and software, IE engineers can design odd shapes and sizes to maximize flow and conform into tight spaces without any sacrifices. To accomplish these shapes, sections of the dowpipe are cast manufactured from the digital models. The result is an incredibly high-quality performance unit with a perfect fit and beautiful finish.



STOCK STYLE FLEX SECTION:

Often times the most common fail point of any aftermarket performance downpipe is the weak flex section designs. Chassis and engine movement coupled with the forces applied from aggressive track and racing environments puts a lot of stress on typical flex section designs that lead to exhaust leaks and eventually -completely failed and separated downpipes.

IE engineers have incorporated much higher-quality reinforced flex section designs used by many stock exhaust units in factory designs. These flex sections are manufactured to last reliably for countless miles of fun.



BOLT-ON INSTALLATION:

The IE downpipe replaces over 6 feet of restrictive factory exhaust tubing, all the way to the cat-back and muffler rear section. Sturdy fabricated mounts and precise engineering result in a rattle free and long last replacement exhaust system. 3D scanning systems were employed to ensure perfect placement both in pre and post-production phases.

Installation should be completed by a professional and preferably on an auto lift.

CLICK HERE to view and download the install guide.



MQB FWD 2.0T DOWNPIPE FEATURES:

  • Proven performance gains for Stage 2 power levels
  • 76mm (3 inch) tubing replaces restrictive 60mm factory tubing
  • Bolt on fitment - no hassle or poorly fitting parts when you choose IE
  • Constructed of 304 stainless long-lasting and high-quality material
  • Thick turbo flange - prevents leaks and warping
  • High flow 200 cell catalytic converter - full power with reduced pollution and smell
  • Metal matrix catalytic structure -
  • OEM style flex section - allows for more adjustment and won’t fail
  • All inclusive kit - downpipe, midpipes, all hardware
  • TIG welded construction - equates to long-lasting welds that are less likely to fail



Vehicle Fitment:

  • Audi A3 8V (FWD, 1.8T and 2.0T)
  • Volkswagen Golf Mk7, Mk7.5 (FWD, 1.8T and 2.0T)
  • Volkswagen Golf GTI Mk7, Mk7.5 (FWD, 2.0T)

Vehicle Fitment

Vehicle Fitment is provided as a guide only to narrow down results. Please check listing for any additional information (measurements, specifications, additional notes) which may affect compatibility or ask for assistance.
2013 Audi A3 8V
2013 Volkswagen Golf Mk7
2013 Volkswagen Golf Mk7 GTI
2014 Audi A3 8V
2014 Volkswagen Golf Mk7
2014 Volkswagen Golf Mk7 GTI
2015 Audi A3 8V
2015 Volkswagen Golf Mk7
2015 Volkswagen Golf Mk7 GTI
2016 Audi A3 8V
2016 Volkswagen Golf Mk7
2016 Volkswagen Golf Mk7 GTI
2017 Audi A3 8V
2017 Volkswagen Golf Mk7
2017 Volkswagen Golf Mk7 GTI
2017 Volkswagen Golf Mk7.5
2017 Volkswagen Golf Mk7.5 GTI
2018 Audi A3 8V
2018 Volkswagen Golf Mk7.5
2018 Volkswagen Golf Mk7.5 GTI
2019 Audi A3 8V
2019 Volkswagen Golf Mk7.5
2019 Volkswagen Golf Mk7.5 GTI

Specifications

SKU IE-IEEXCI3
Brand INTEGRATED ENGINEERING
Shipping Weight 10.0000kg
Shipping Width 0.300m
Shipping Height 0.200m
Shipping Length 0.200m
