Please purchase the item according to the manufacture part number

AVAILABLE FOR PRE ORDER ETA Q1 2019 LIMITED STOCK

• Bearing Type: Ball Bearing
• Cooling System: Oil & Water Cooled
• Turbine Housing: Externally Wastegated, 1.28a/r
• Base Flange: V-Band Single Entry
• Horsepower: 475-1200hp
• Displacement: 2.0L - 7.0L

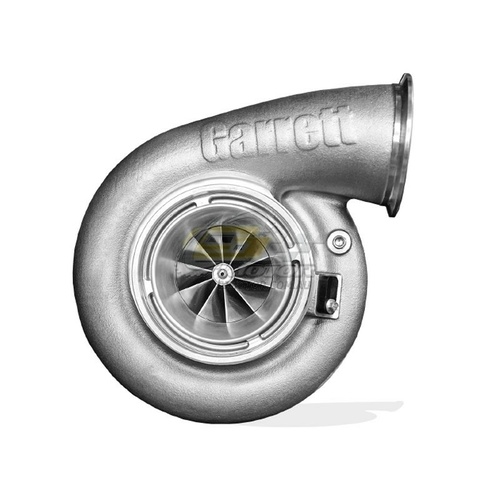

Features of the Garrett G42 Compact Series:

• Garrett® G Series Compressor Aerodynamics for maximum HP (10 Blade)
• 109Lbs/Min Compressor Flow
• 0.85a/r Compressor Housing
• Compressor Housing is the same physical size as the GTX42
• Stainless Steel Non Wastegated Turbine Housing rated up to 950°C
• -6AN Water Fittings Included
• CFD (Computational Fluid Dynamics) engineered compressor wheel
• Optimized blade contour with 10 blade count
• Forged & fully-machined compressor wheel
• More power and faster boost response
• Smaller Wheel = lower inertia
• Aluminium backplate for reduced weight
• Twin Piston Rings Compressor & turbine End
• 10mm Ceramic Dual Ball Bearing Cartridge
• The turbine wheel features all new aerodynamics to improve flow and boost response
• Turbine Wheel features Inconel super alloy construction for temperatures up to 950C
• Turbine housings are made from stainless steel to provide ultimate durability and temperature capability up 950°C
