SKU: G879779-5014S

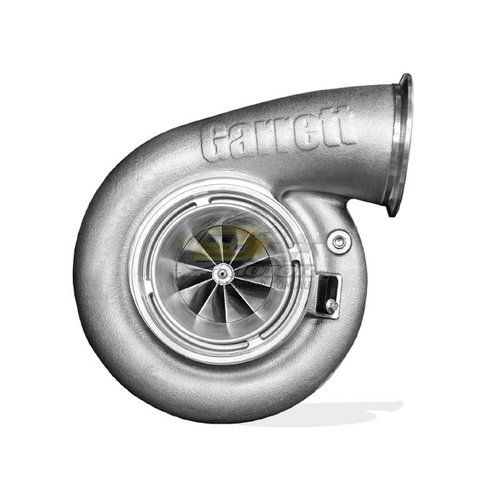

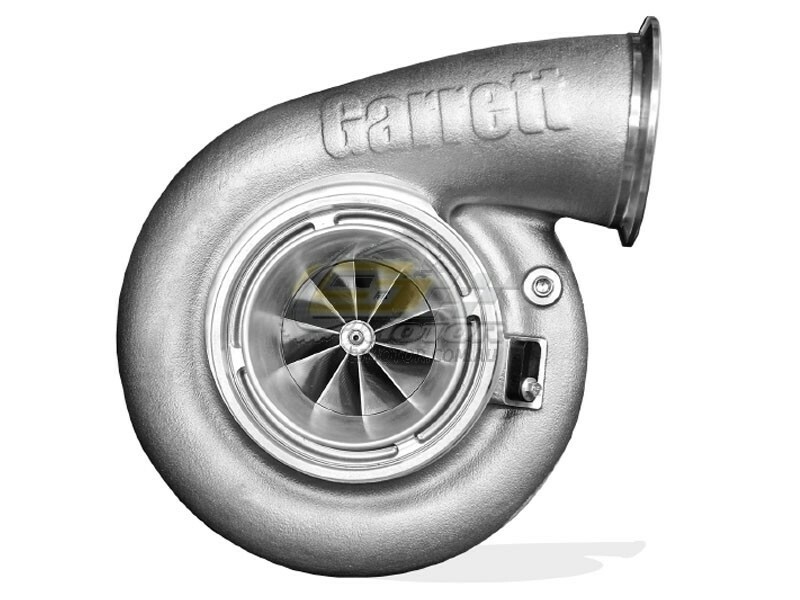

Garrett G42-1450 V-Band Inlet/Outlet 1.15a/r

Part Number: G879779-5014S

$5,289.00


In Stock


Calculate Shipping



Australia wide rate - $40.00

Description

Please purchase the item according to the manufacture part number

AVAILABLE FOR PRE ORDER ETA Q1 2019 LIMITED STOCK

  • Bearing Type: Ball Bearing
  • Cooling System: Oil & Water Cooled
  • Turbine Housing: Externally Wastegated, 1.15a/r
  • Base Flange: V-Band Single Entry
  • Horsepower: 475-1200hp
  • Displacement: 2.0L - 7.0L

Features of the Garrett G42 Compact Series:

  • Garrett® G Series Compressor Aerodynamics for maximum HP (10 Blade)
  • 131Lbs/Min Compressor Flow
  • 0.85a/r Compressor Housing
  • Compressor Housing is the same physical size as the GTX42
  • Stainless Steel Non Wastegated Turbine Housing rated up to 950°C
  • -6AN Water Fittings Included
  • CFD (Computational Fluid Dynamics) engineered compressor wheel
  • Optimized blade contour with 10 blade count
  • Forged & fully-machined compressor wheel
  • More power and faster boost response
  • Smaller Wheel = lower inertia
  • Aluminium backplate for reduced weight
  • Twin Piston Rings Compressor & turbine End
  • 10mm Ceramic Dual Ball Bearing Cartridge
  • The turbine wheel features all new aerodynamics to improve flow and boost response
  • Turbine Wheel features Inconel super alloy construction for temperatures up to 950C
  • Turbine housings are made from stainless steel to provide ultimate durability and temperature capability up 950°C

Specifications

SKU G879779-5014S
Brand Garrett
Shipping Weight 20.0000kg
Shipping Width 0.400m
Shipping Height 0.200m
Shipping Length 0.200m
